About The Product
Product Details

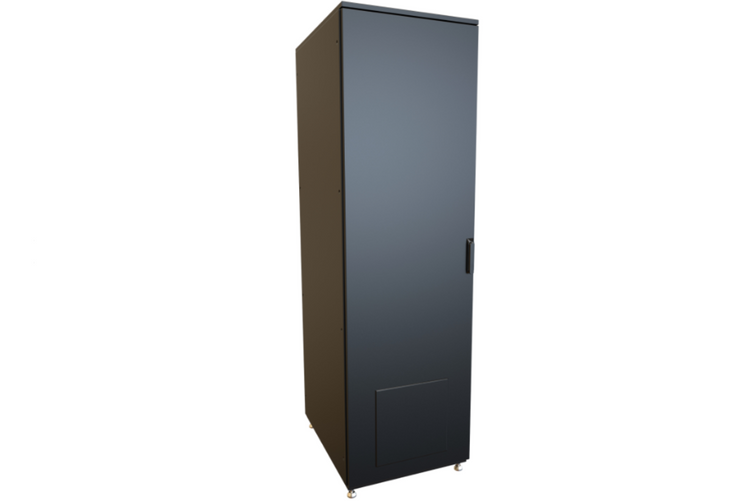

The HDME is ideal for housing network access equipment in harsh environments such as a factory floor. The HDME features a sealed cabinet with included gland plates for simple installation of filter fans. The UL and CSA tested NEMA ratings provide outstanding protection against dust, oil and air contaminants.
Features:
- Front and rear solid doors include installed gland plate for cooling options. Doors open to 135°.
- Reinforced top panel with provisions for optional HDMELB lifting eye-bolts.
- Frames can be joined together with an optional joining kit.
- Foam gasket provides tight and secure seal protection from moisture, dust, oil and air contaminants.
- Available in 42U and 47U mounting heights.
- Available 24" wide. 31.5" is available as a special order.
- Available in 31.5" and 39.37" overall depths.

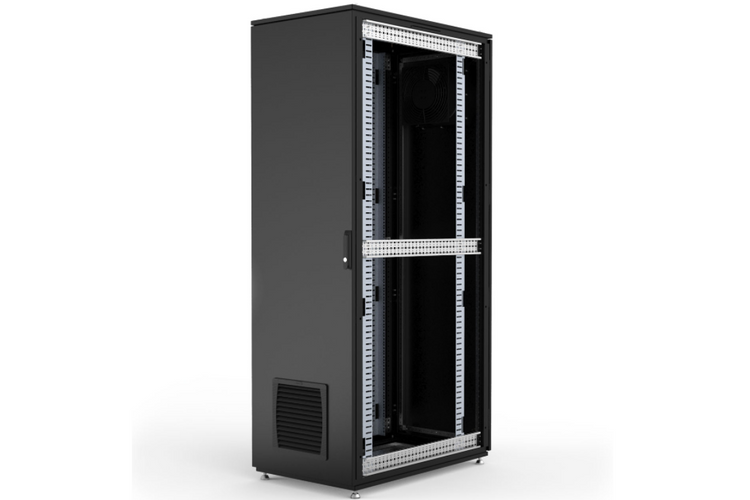

- Includes adjustable depth mount rails.
- Flush mounted doors with quarter-turn lock.
Specifications:
- Cabinet frame, doors and side panels are constructed in 14-gauge steel.
- Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
- Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
- NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
- Lift-tested to 900 lbs (408 kg) when used with our HDMELB lifting eye-bolts.
- Grounding studs provided on frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
- Finished in rugged textured black powder paint. Also available in textured light gray upon request.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- TAA compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America.
Included Components:
- Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
- Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
- Two (2) solid removable side panels.
- Two (2) solid doors with
- one (1) installed gland plate
- one (1) die-cast locking swing handle
- Two (2) door keys
- One (1) solid top panel.
- Two (2) bottom panels with gland plates
- Four (4) leveling feet
- Starter pack of CAGKIT1032-50 screws
| Size H x W x D | 78.73 in x 23.62 in x 39.38 in (2,000 mm x 600 mm x 1,000 mm) |
|---|---|
| Shipping Weight | 434 lbs (196.86 kg) |
| UNSPSC | 43223306 |
| UPC | 623980452463 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 42 |
| Rack Type | Cabinet |
| Paint Color | Black |
| Rail Type | Square Hole with 10-32 Cage Nut |
Product Details
The HDME is ideal for housing network access equipment in harsh environments such as a factory floor. The HDME features a sealed cabinet with included gland plates for simple installation of filter fans. The UL and CSA tested NEMA ratings provide outstanding protection against dust, oil and air contaminants.
Features:
- Front and rear solid doors include installed gland plate for cooling options. Doors open to 135°.
- Reinforced top panel with provisions for optional HDMELB lifting eye-bolts.
- Frames can be joined together with an optional joining kit.
- Foam gasket provides tight and secure seal protection from moisture, dust, oil and air contaminants.
- Available in 42U and 47U mounting heights.
- Available 24" wide. 31.5" is available as a special order.
- Available in 31.5" and 39.37" overall depths.
- Includes adjustable depth mount rails.
- Flush mounted doors with quarter-turn lock.
Specifications:
- Cabinet frame, doors and side panels are constructed in 14-gauge steel.
- Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
- Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
- NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
- Lift-tested to 900 lbs (408 kg) when used with our HDMELB lifting eye-bolts.
- Grounding studs provided on frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
- Finished in rugged textured black powder paint. Also available in textured light gray upon request.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- TAA compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America.
Included Components:
- Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
- Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
- Two (2) solid removable side panels.
- Two (2) solid doors with
- one (1) installed gland plate
- one (1) die-cast locking swing handle
- Two (2) door keys
- One (1) solid top panel.
- Two (2) bottom panels with gland plates
- Four (4) leveling feet
- Starter pack of CAGKIT1032-50 screws
| Size H x W x D | 78.73 in x 23.62 in x 39.38 in (2,000 mm x 600 mm x 1,000 mm) |
|---|---|
| Shipping Weight | 434 lbs (196.86 kg) |
| UNSPSC | 43223306 |
| UPC | 623980452463 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 42 |
| Rack Type | Cabinet |
| Paint Color | Black |
| Rail Type | Square Hole with 10-32 Cage Nut |
by
Hammond Manufacturing
42U NEMA Rated Dust-Tight Server Cabinet HDME Series (HDME20610BK)
Translation missing: en.products.product.sku:HDME20610BK
- Regular price
- $5,022.00
- Sale price
- $5,022.00
