Superior Essex: 24 Strand Singlemode Flat Drop Toneable Cable

6T024K101 · Superior Essex · 24-Strand Singlemode (G.657.A1) · Outdoor Series 6T · Toneable / Copper Tracer

Superior Essex 24-fiber Series 6T Toneable Drop FTTP Cable contains twenty-four bend-resistant G.657.A1 singlemode fibers in a PFM™ gel-filled loose buffer tube. Two water-blocking dielectric strength rods and a 24 AWG copper toning conductor support aerial or direct-buried fiber-to-the-premises installations. The flat-profile cable has a black UV-resistant jacket. Price: $0.45 per foot (verify current pricing at checkout).

SPEC SHEETS ▾

PRODUCT DETAILS ▾

Item / SKU	6T024K101
Manufacturer	Superior Essex
Product Family	Series 6T Toneable Drop FTTP
Fiber Count	24 strands
Fiber Type	Singlemode, TeraFlex® bend-resistant G.657.A1 (fiber code K)
Cable Type	Outdoor flat-drop; single loose tube, PFM™ gel-filled
Armor / Strength Members	Non-armored; two water-blocking dielectric strength rods; 24 AWG copper toneable element
Jacket	Black, UV-resistant
Fiber / Buffer	24 singlemode fibers in one PFM™ gel-filled loose buffer tube
Nominal Cable Dimensions	0.17 × 0.36 in (4.4 × 9.2 mm); minor × major
Installation Methods	Aerial or direct burial; FTTP drop
Operating / Storage Temperature	-40°C to +70°C (Series 6T family)
Installation Temperature	-30°C to +70°C (Series 6T family)
Maximum Installation Tensile Load	300 lbf (1,335 N)
Maximum Long-Term Tensile Load	90 lbf (405 N)
Minimum Bend Radius	3.15 in (76 mm), per manufacturer table
Nominal Cable Weight	25 lb/1,000 ft (37 kg/km)
Packaging	Master reel (6T024x101 configuration); confirm actual reel length
Standards	Telcordia GR-20-CORE; RDUP PE-90 Designation 571Q; RoHS-compliant
Price / Ordering	$0.45 per foot on Telecom Specialties standard listing; verify current price

Fiber: 24-Strand Singlemode G.657.A1 | Construction: PFM™ Gel-Filled Series 6T, Toneable (24 AWG Copper) | Ordering: Priced Per Foot

Features & Benefits ▾

24-fiber G.657.A1 bend-resistant singlemode design for FTTP drop connections.
PFM™ non-sticky gel protects fibers and simplifies cable preparation.
Two water-blocking dielectric rods provide tensile and crush protection.
24 AWG copper toning conductor enables buried-cable location.
Black UV-resistant flat-drop jacket supports aerial and direct-buried installations.

Cable Construction & Applications ▾

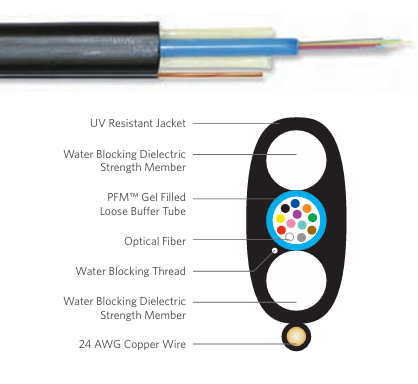

Twenty-four G.657.A1 singlemode fibers sit inside a PFM™ gel-filled loose buffer tube, flanked by two water-blocking dielectric strength members. A 24 AWG copper toning wire is encased in the black UV-resistant jacket. This is Superior Essex Series 6T, not Corning SST-Drop.

Suitable for aerial and direct-buried FTTP drop, broadband and local-loop applications. Refer to the Superior Essex Series 6T PDF for mechanical, environmental and span limits.

Ordering, Reel Lengths & Shipping ▾

Website-listed price: $0.45 per foot for the standard listing. Enter requested footage as quantity; verify price and availability at checkout.

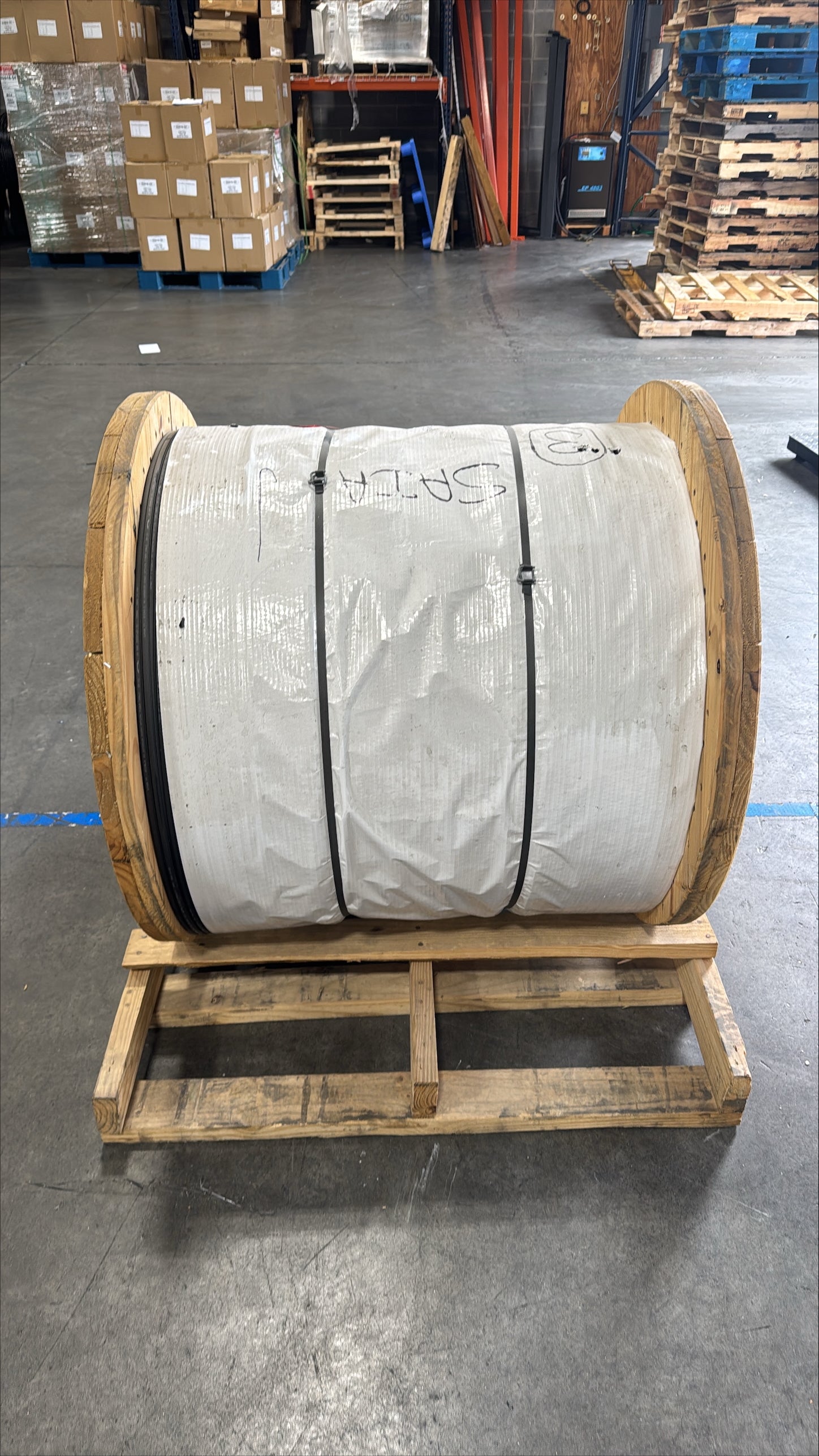

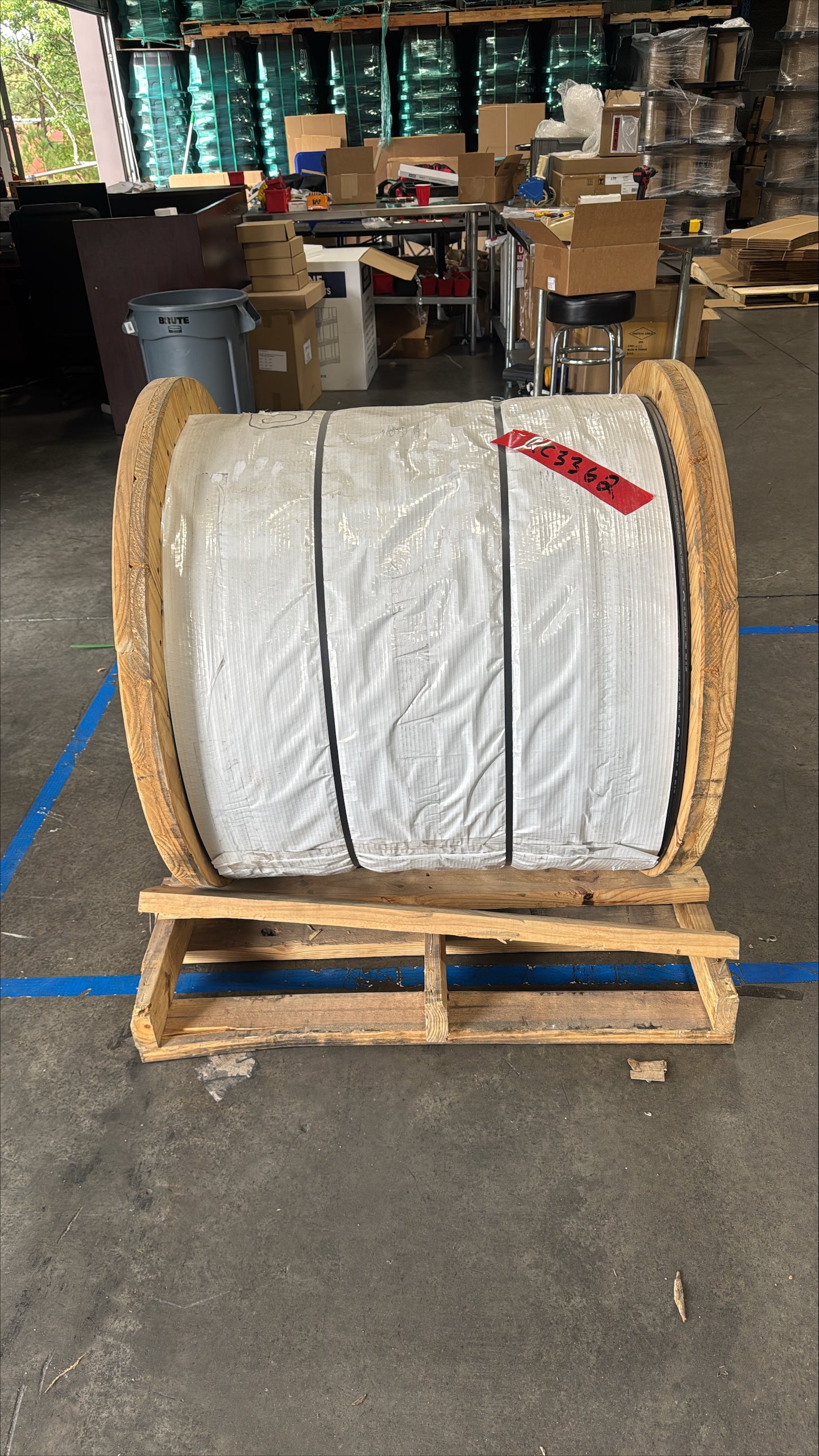

The 6T024x101 configuration is identified as master-reel packaging in the manufacturer datasheet. Actual reel footage, custom lengths, shipping methods and bulk pricing should be confirmed with Telecom Specialties.

Informational Links ▾

Product configuration, ordering assistance and technical document requests.

Shop Flat Drop ↗Request Bulk Pricing & Availability ↗
