Superior Essex: 12 Strand, Dri-Lite, Loose Tube, SJSA, Singlemode - 1,668ft (0.48/Ft)

120123D01 · Superior Essex Dri-Lite® Series 12D · Singlemode · Single Jacket / Single Steel Armor · $0.48/ft

The Superior Essex 120123D01 is a 12-strand singlemode outdoor loose-tube fiber optic cable from the Dri-Lite® Series 12D family. Its single-jacket, single-armor (SJSA) design features gel-free buffer tubes stranded around a central strength member, dry water-blocking components, corrugated steel armor and a black UV-resistant outer jacket. Built for outside plant (OSP) trunk, distribution and feeder networks, including direct burial, underground duct and properly engineered lashed aerial installations. This listing is for one 1,668-ft reel at $0.48/ft ($800.64 total).

SPEC SHEETS ▾

PRODUCT DETAILS ▾

Item / SKU	120123D01
Manufacturer	Superior Essex
Series	Dri-Lite® 12D
Fiber Count	12 strands
Fiber Type	Singlemode, reduced water peak (code 3)
Construction	Stranded loose tube; single jacket / single corrugated steel armor
Water Blocking	Dry (SAP) core; gel-free buffer tubes

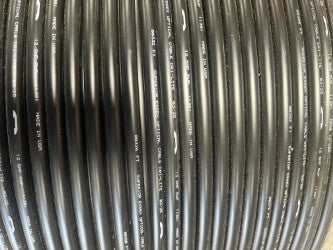

Outer Jacket	Black UV-resistant jacket
Nominal Diameter	0.46 in (11.7 mm)
Approx. Cable Weight	84 lb / 1,000 ft
Max. Installation Tension	600 lbf (2,700 N)
Max. Long-Term Tension	200 lbf (890 N)
Min. Installation Bend Radius	9.2 in (234 mm)
Min. Long-Term Bend Radius	4.6 in (117 mm)
Operating / Storage Temperature	−40°C to +70°C
Installation Temperature	−30°C to +70°C
Reel Length	1,668 ft
Price Per Foot	$0.42
Calculated Reel Total	$700.56

Fiber: 6-Strand Singlemode | Construction: Non-Armored / Toneable Flat Drop | Ordering: 24,548-ft Reel

Features & Benefits ▾

12 singlemode fibers for OSP backbone, feeder and distribution runs
Gel-free buffer tubes simplify fiber access and cleanup
Dry (SAP) core and water-blocking tape help resist moisture migration
Corrugated steel armor adds crush and rodent protection
Black UV-resistant jacket supports outdoor installation
Reverse oscillating lay (ROL) stranded loose-tube construction
Rip cords beneath the armor ease cable entry

Cable Construction & Applications ▾

Superior Essex Dri-Lite® Series 12D uses gel-free loose buffer tubes stranded around a central strength member. Flexible dielectric strength members and water-blocking tape surround the core, followed by corrugated steel armor and a black outer jacket.

Applications: Direct burial, underground duct, lashed aerial (where properly supported), trunk, feeder and distribution routes; local loop, metro, long-haul and broadband networks.

Manufacturer family standards: Telcordia GR-20-CORE, RDUP PE-90 MLT, ICEA S-87-640-2011 and RoHS. Confirm site-specific installation requirements.

Ordering, Reel Lengths & Shipping ▾

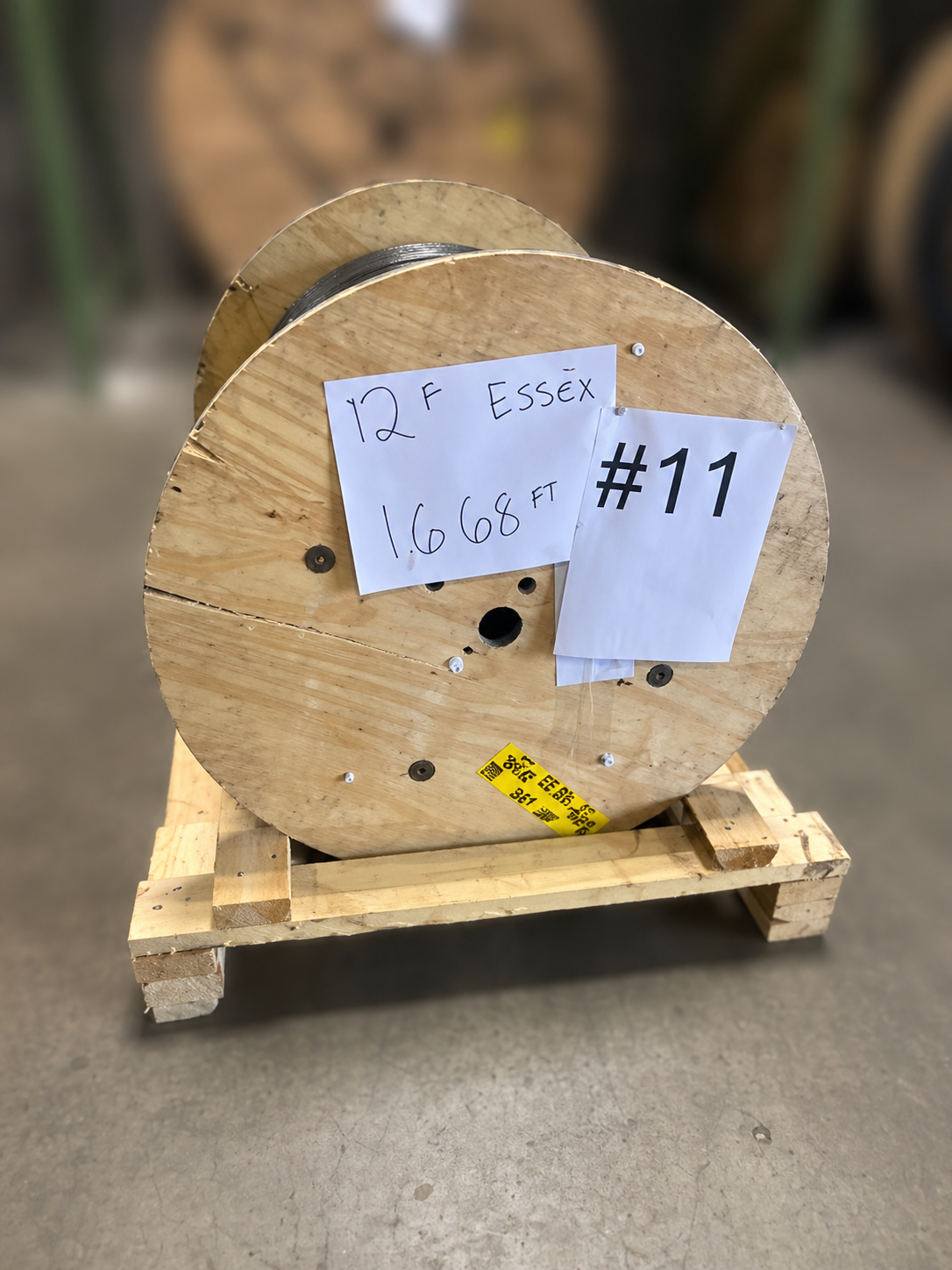

Listed reel: 1,668 ft × $0.42/ft = $700.56. Reel #11, per the current Telecom Specialties listing.

Condition: New cable on original wooden reel, stored indoors. Cable markings and reel photos should be checked to confirm footage and condition; sold as pictured.

Ships by freight due to reel size and weight; local pickup available on request. Contact Telecom Specialties for current stock, freight quotation, cut lengths and bulk availability.
