About The Product

Product Details

Corning: 24 Strand Singlemode Outdoor Non-Armored (SJNA) — 20,000 ft

024ZU4-T4F22D20 · Corning ALTOS® Binderless FastAccess® · OS2 Singlemode · All-Dielectric / Non-Armored · $0.49/ft

The 024ZU4-T4F22D20 is Corning ALTOS® outdoor, all-dielectric, non-armored, gel-free stranded loose-tube cable containing 24 SMF-28® Ultra OS2 singlemode fibers. Binderless FastAccess® technology simplifies cable entry. The cable has two active tubes with 12 fibers per tube, a black polyethylene jacket and a nominal 10.2 mm outside diameter. Suitable for outdoor lashed aerial and duct installations. 20,000 ft at $0.49/ft ($9,800.00 total).

SPEC SHEETS ▾

Official Corning outside-plant cable ordering guide PDF. The ALTOS® Gel-Free, All-Dielectric, Non-Armored table explicitly identifies 024ZU4-T4F22D20 as the 24-fiber SMF-28® Ultra model. For detailed physical specifications, refer to the manufacturer's exact-part product page.

Corning 24-Fiber Non-Armored — Open Spec Sheet ↗

PRODUCT DETAILS ▾

Item / SKU	024ZU4-T4F22D20
Manufacturer	Corning
Product Family	ALTOS® Gel-Free, All-Dielectric with Binderless FastAccess® Technology
Fiber Count	24 strands (2 active tubes; 12 fibers per tube)
Fiber Mode	OS2 singlemode — Corning SMF-28® Ultra
Cable Construction	Gel-free stranded loose tube; all-dielectric; non-armored
Jacket	Black polyethylene (PE)
Nominal Outside Diameter	10.2 mm
Central Element	Dielectric
Applications	Outdoor lashed aerial and duct

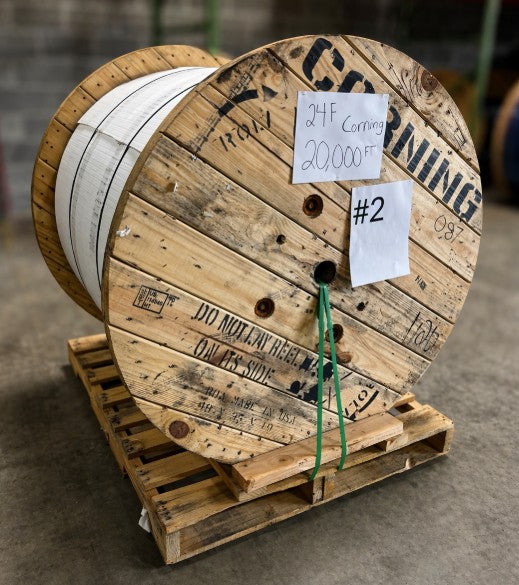

Reel Length	20,000 ft
Price per Foot	$0.49
Listed Total	$9,800.00

Fiber: 24-Strand OS2 Singlemode | Construction: Single-Jacket / Steel-Tape Armored | Ordering: 4,540-ft Reel

Features & Benefits ▾

24 OS2 singlemode Corning SMF-28® Ultra fibers in two 12-fiber loose tubes
All-dielectric, non-armored design requires no metallic armor bonding or grounding
Binderless FastAccess® technology supports faster, easier cable entry
Gel-free, fully waterblocked loose-tube construction
Black polyethylene jacket designed for outside-plant exposure
Designed for outdoor lashed aerial and duct applications

Cable Construction & Applications ▾

Six tube positions: two active loose tubes and four filling elements around a dielectric central member. Each active tube contains 12 fibers. Nominal cable diameter: 10.2 mm; nominal weight: 63.4 kg/km. The jacket is black polyethylene; the cable is non-armored and all-dielectric.

Installation: outdoor lashed aerial and duct. Installation bend diameter: 306 mm minimum; operating bend diameter: 204 mm minimum. Do not substitute armored or direct-burial specifications for this SKU.

Ordering, Reel Lengths & Shipping ▾

Listed reel: 20,000 ft at $0.49/ft, $9,800.00 total. Confirm current stock, availability and pricing before ordering.

Confirm reel condition, shipping and freight arrangements, and any project-specific compliance documentation with Telecom Specialties.

Informational Links ▾

Product configuration, ordering assistance and technical document requests.
