SPEC SHEET

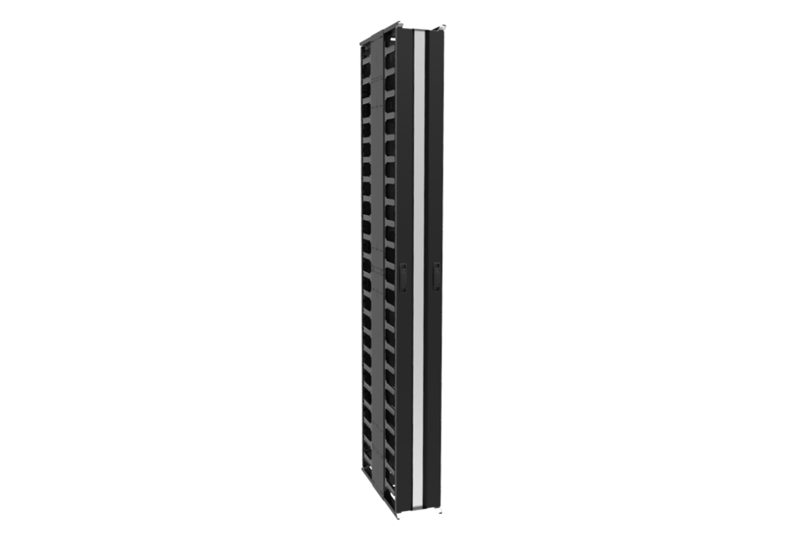

The new Hammond Vertical Fingered Manager (VFM) is designed to manage easy to install, double-hinged door keeps the rack system visually organized and can be removed for ease of cable installation.

Features:

• Sturdy, reversible steel slam-latch door/cover with pinch-trigger handle included.
• Available in:
  • Four (4) widths (6”, 8”, 10” or 12”).
  • Two (2) powder coat finished (textured black and textured white).
• Metal finger features sturdy T-shape steel fingers are spaced at 2RU and provide support for high-density cable bundles and heavy gauge cables. Includes clip-on plastic finger guards (shipped loose) for cable 1.25” bend radius.
• Each manager comes with two openings for cable pass-thru.
• Includes cable mounting lances for hook and loop cable organization.
• Compatible with Hammond DNRRHDW, DC4R, DRZ4, RB-2P and RB-2PA Series of open frame racks.
  • Use the optional riser base VFMB2BK for easier installation and manager support.
  • We strongly recommend you use our rack bolt-down kit when mounting large cable managers.
• Optional inner and side panel, spool and cable divider accessories available.
• TAA Compliant.
• RoHS Compliant.
• Manufactured in North America.
