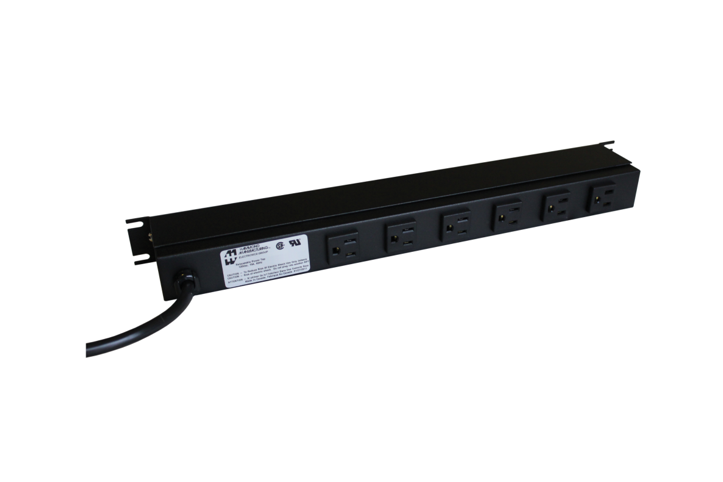

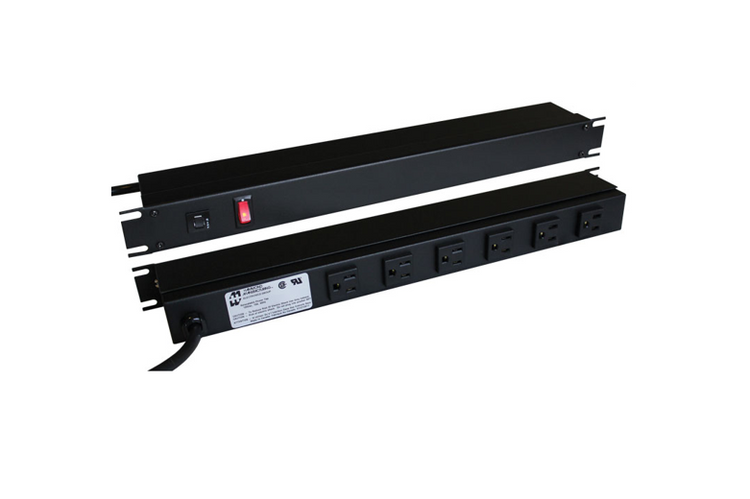

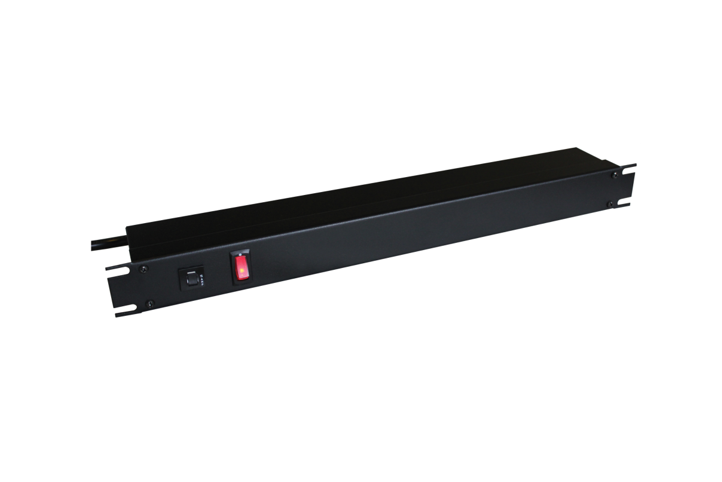

Rack Mount Basic PDU 1583 Series (1583H8B1BK)

Original price $63.40 - Original price $63.40
Original price
$63.40
$63.40 - $63.40
Current price $63.40
SKU 1583H8B1BK

CLICK FOR SPEC

Features:

  • Designed for power distribution from the front and/or rear of the unit.
  • 1U horizontal 19" rackmount installation.
  • With lighted on/off switch or red pilot light to indicate power on.
  • 6 outlet models include 2 outlets with extra spacing for clearance of most plug in transformers.
  • Available in ASA 61 grey or black powder coat finish.

Specifications:

  • Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
  • Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type.
  • Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
  • UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
    Shipping Weight 4.38 lbs (1.99 kg)
    UNSPSC 39121710
    UPC 623980758909
    REACH Compliant Yes
    RoHS Compliant Yes
    Outlet Strip Type 19-inch Rack-Mount
    Rated Voltage 120 VAC
    Rated Current (Amps) 15
    Switch Type Illuminated On/Off Switch
    Total Outlets 8
    Outlet Type NEMA 5-15R
    Plug Type NEMA 5-15P
    Cord Included Yes
    Cord Length (feet) 15
    Shielded Cord No
    Surge Protection No
    Color Black
    Rotated Outlets No
    Rack Units 1U
    Outlets (Rear) 8
