About The Product
Product Details
Lightweight composite underground handhole for fiber, telecom, electric, and utility access. Delivers ANSI/SCTE-77 Tier 22 performance at a fraction of the weight of polymer concrete.
Highlights
- Nominal size: 30" L × 48" W × 36" D
- Approx. exterior: 33-3/4" × 51-1/4" × 36"
-
Material: Duralite composite / polyolefin blend (HDPE style)
-
Straight wall body, about 150 lbs.
-

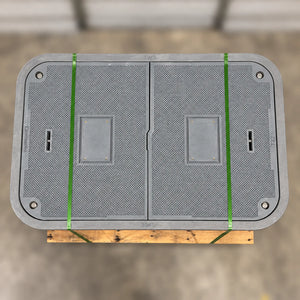

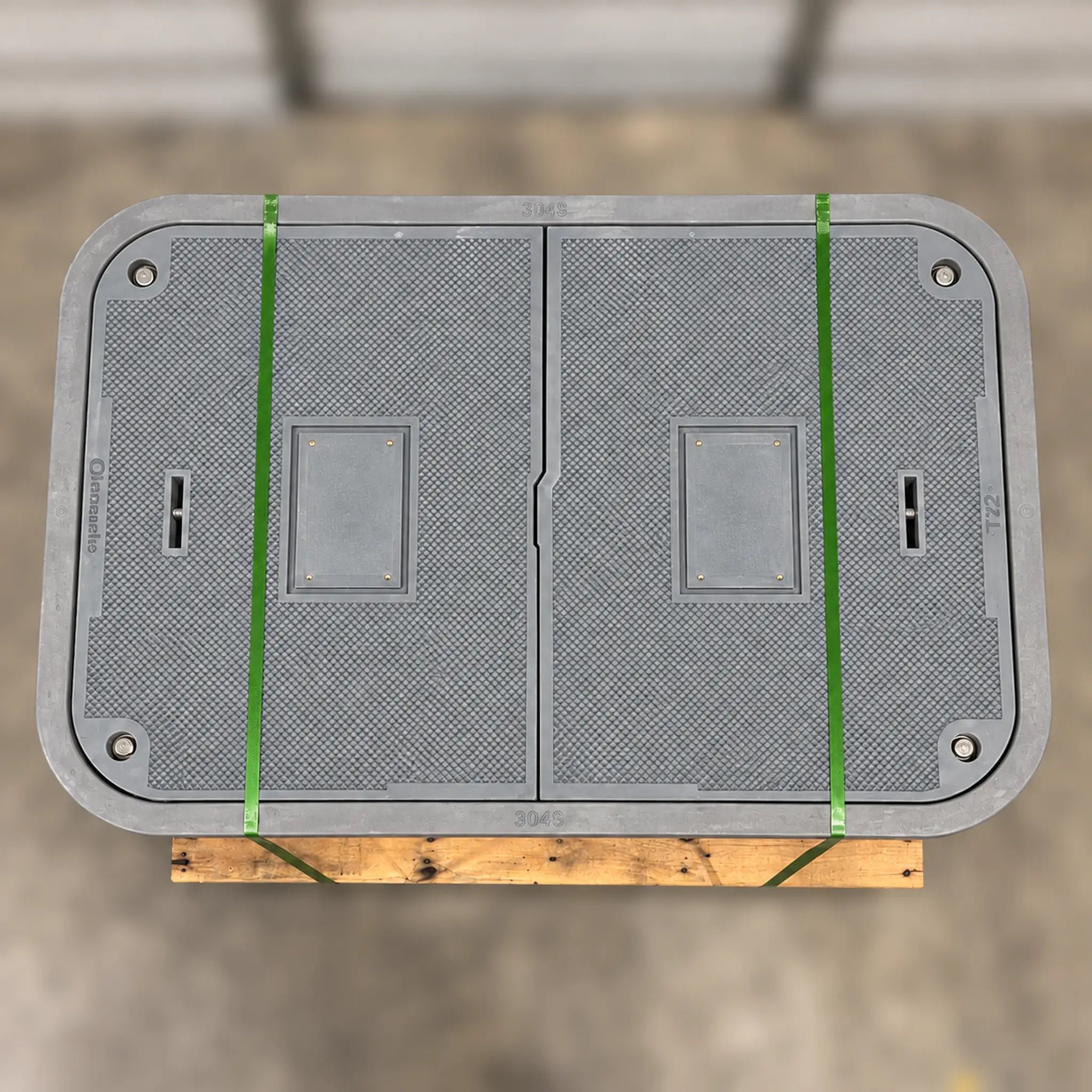

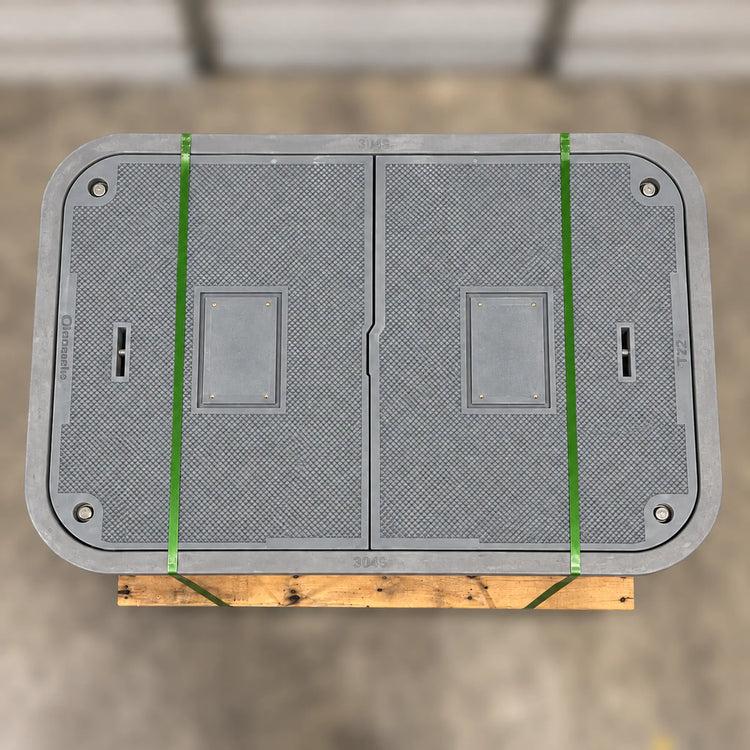

Split covers: flush about 39 lbs. per half
- ANSI/SCTE-77 Tier 22 with matching T22 cover
-
Typical T22 design load 22,500 lbs. / test load 33,750 lbs.
-
Incidental / non vehicular traffic only, not for driving lanes
- Up to 50–75% lighter than comparable polymer concrete vaults
-
Chip, crack, and flame resistant (ASTM D635)
Typical uses Fiber splice access, OSP handholes, broadband enclosures, electrical pull points, and municipal utility vaults that need Tier 22 rating without polymer-concrete weight.
**Please note, units are sold as the assembly**
Product Details
Lightweight composite underground handhole for fiber, telecom, electric, and utility access. Delivers ANSI/SCTE-77 Tier 22 performance at a fraction of the weight of polymer concrete.
Highlights
- Nominal size: 30" L × 48" W × 36" D
- Approx. exterior: 33-3/4" × 51-1/4" × 36"
-
Material: Duralite composite / polyolefin blend (HDPE style)
-
Straight wall body, about 150 lbs.
-
Split covers: flush about 39 lbs. per half
- ANSI/SCTE-77 Tier 22 with matching T22 cover
-
Typical T22 design load 22,500 lbs. / test load 33,750 lbs.
-
Incidental / non vehicular traffic only, not for driving lanes
- Up to 50–75% lighter than comparable polymer concrete vaults
-
Chip, crack, and flame resistant (ASTM D635)
Typical uses Fiber splice access, OSP handholes, broadband enclosures, electrical pull points, and municipal utility vaults that need Tier 22 rating without polymer-concrete weight.
**Please note, units are sold as the assembly**
Underground Enclosures
by
Utility Plastics

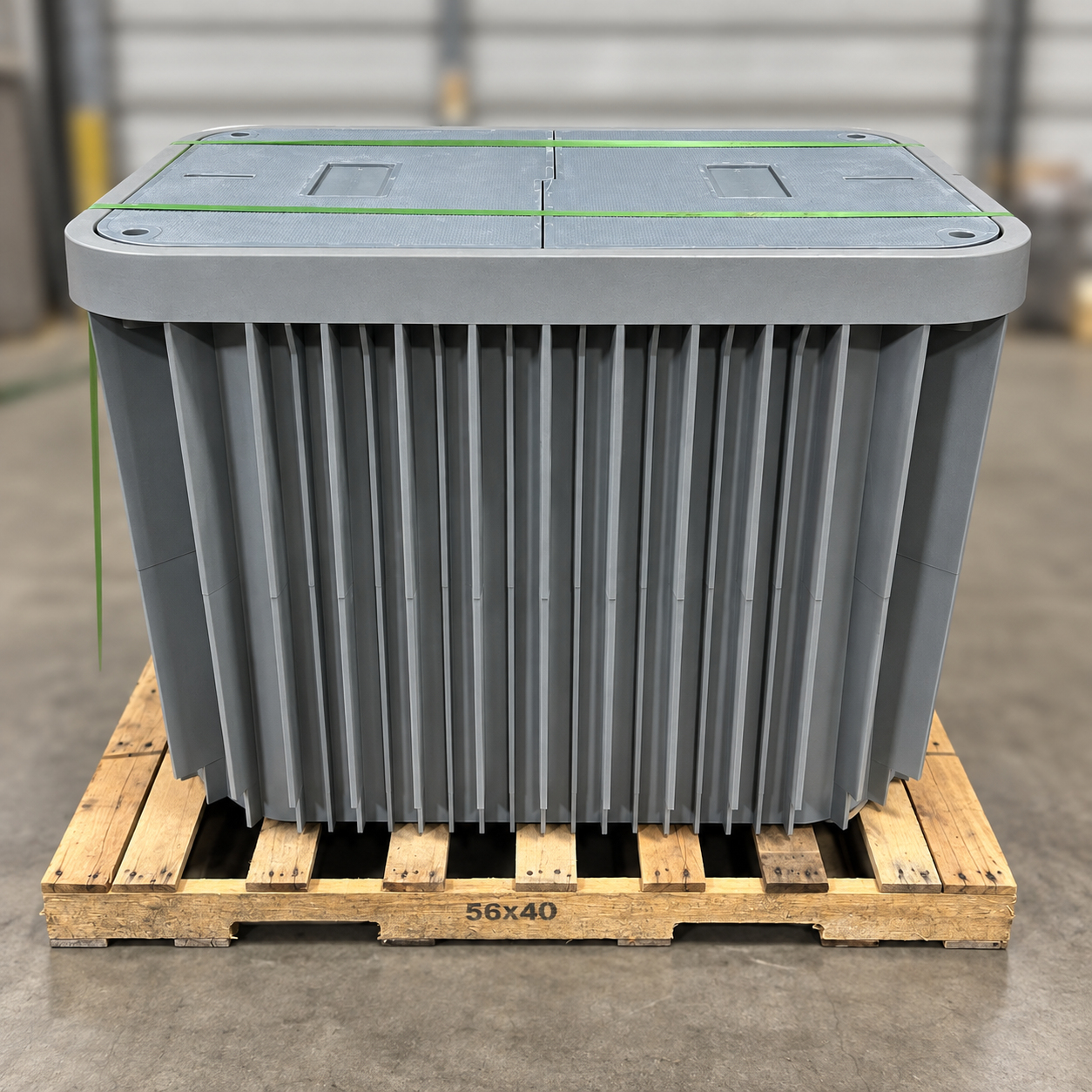

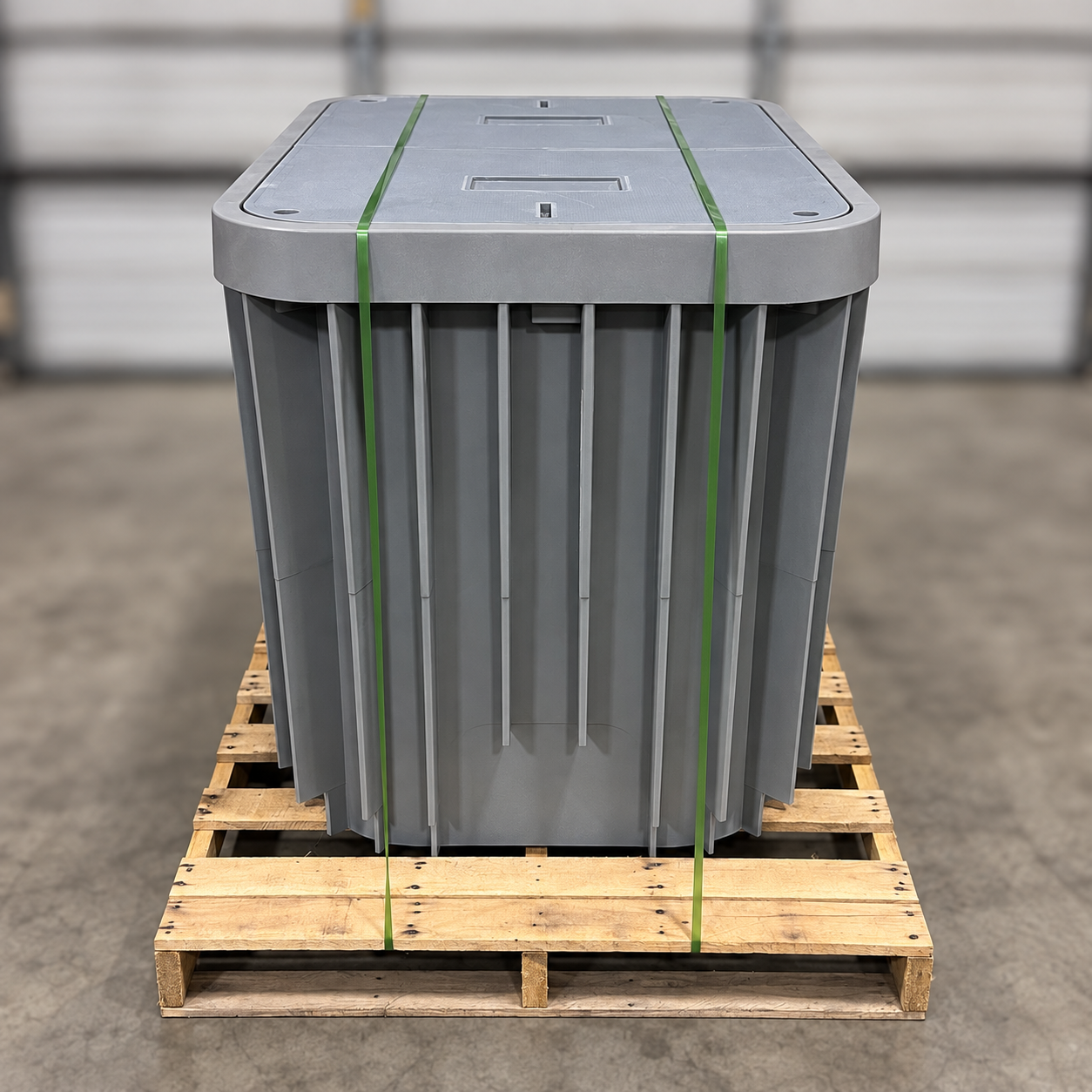

Oldcastle Duralite® 30" x 48" x 36" Tier 22 Handhole
Translation missing: en.products.product.sku:30481702
- Regular price
- $1,175.00
- Sale price
- $1,175.00
- Regular price
-
Couldn't load pickup availability
What's Included?
All vaults come pre-assembled with lid and base.
Are Marked Lids Available?
All vaults come blank but markers are available upon request
How Will It Ship?
Vaults must be palletized and shipped LTL
