About The Product

Product Details
PRODUCT DETAILSView Product Details
Item / SKU UP1520GLF1
Nominal Size 14″ × 20″ lid dimensions; 12″ enclosure depth (rectangular handhole)
Estimated Assembly Weight Approx. 10 lb 5 oz assembled
Load Rating ASTM C857 pedestrian/light-duty, non-vehicular use only. Actual rating depends on box/lid configuration.
Available Order Quantities Single-unit product listing; contact us for case, project, or bulk quantities
Units Per Pallet Pallet configuration and volume pricing: contact us for availability
Manufacturer Utility Plastics
Material UV-stabilized polypropylene
Base / Lid Colors Black base / green lid (alternate lid colors by request)
Construction Rectangular 14″ × 20″ nominal lid footprint with 12″-deep body; reverse-stackable design can provide 24″ depth with a second compatible unit
Lid / Fastener Green lid supplied with base. Confirm required lid fasteners and configuration for this exact SKU
Markings Standard green lid; custom logo or identification markings available upon request
Quantity Discounts Available for qualifying orders; contact our sales team

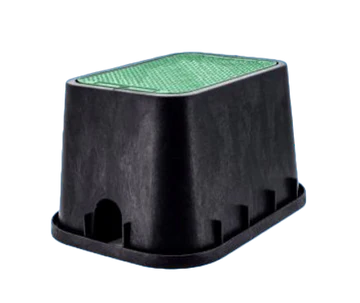

Base:Black, UV-stabilized polypropylene enclosure.Lid:Green lid; fastener configuration per selected assembly.Included: Sold with the Base and Lid.
Informational Links

Manufacturer UP1520 drawing, this exact Shopify product, and customization enquiries.

Loading Requirements
Pedestrian / Light-Duty Only
  • Classification: ASTM C857 pedestrian, light-duty applications.
  • Permitted use: Foot traffic only, with final suitability depending on the chosen lid and base combination.
  • Do not use: Vehicle lanes, driveways, parking areas or other vehicular loading applications.

Important: This product is described for ASTM C857 pedestrian/light-duty non-vehicular applications only. It is not a Tier 22 or H-20 traffic-rated vault. Confirm assembly load suitability and installation requirements before specifying.

Cast Logos, Markings & Accessories
Lid Identification & Optional Features

This SKU is listed with a black polypropylene body and green lid. Custom lid logos, labels, and alternate colors are available upon request, subject to compatibility and minimums.

The UP1520 enclosure has optional mouseholes and knockouts for conduit routes. Compatible accessories, lid markings, and lid colors are available on request. The manufacturer notes compatible units can be reverse-stacked to create a 24″-deep arrangement.

UP1520 Enclosure Features
  • UV-stabilized polypropylene body
  • Rectangular 14″ × 20″ lid footprint with 12″ enclosure depth
  • Optional mouseholes and knockouts for conduit routing (confirm chosen configuration)
  • Non-vehicular pedestrian applications only

Optional color choices, EMS markers, and lid markings are subject to availability and compatibility. Contact us to confirm options for this handhole.

Accessories & Customization OptionsAvailable Upon Request

Pictures are examples of available options; please confirm compatibility, availability, and pricing before ordering.

Looking To Place A Bulk Order?

We offer flexible quantities to meet your needs, from individual units to large volume orders. For quantities outside the standard online package, contact our sales team for customized pricing and availability.

Handhole Load Rating & Size Guide

1. Match the load rating to your installation. 2. Open a size chart below to shop the right enclosure.

Handhole Ratings at a Glance
Representative product images from our website are shown below so customers can quickly compare each handhole rating.
Pedestrian handhole
Pedestrian
Foot traffic only
Not vehicle-rated
Landscaping and protected pedestrian areas
Tier 8 handhole
Tier 8
8,000 lb design
12,000 lb test
Sidewalks with incidental vehicle exposure
Tier 15 handhole
Tier 15
15,000 lb design
22,500 lb test
Off-road locations with occasional vehicle loads
Tier 22 handhole
Tier 22
22,500 lb design
33,750 lb test
Off-road locations with occasional heavier vehicle loads
H-20 traffic handhole
H-20 Traffic
16,000 lb / wheel
32,000 lb / axle
Deliberate truck/vehicle traffic, to approved H-20 design

Design load = rated design value; test load = higher verification load, not the allowable everyday load. Tier ratings follow ANSI/SCTE 77; H-20 is a separate AASHTO traffic-loading classification. Confirm the exact lid and enclosure rating for your project.

Shop by size
Pedestrian & Tier 22 — Browse Sizes
Pedestrian: Foot traffic only.   Tier 22: 22,500 lb design / 33,750 lb test. Choose a size from the matching column below.
Size Pedestrian
Foot traffic only 		Tier 22 · Polymer Concrete
22,500 lb design 		HDPE / Composite
Check model-specific tier
10″ round Shop Now
Shop Now 		Contact for Availability Contact for Availability
10″ × 15″ × 12″ Shop Now Contact for Availability Contact for Availability
11″ × 18″ × 12″ Contact for Availability Shop Now Contact for Availability
11″ × 18″ × 18″ Contact for Availability Shop Now
Shop Now 		Contact for Availability
12″ × 12″ × 12″ Contact for Availability Shop Now Contact for Availability
13″ × 24″ × 12″ Contact for Availability Shop Now Contact for Availability
13″ × 24″ × 18″ Contact for Availability Shop Now Contact for Availability
14″ × 20″ × 12″ Shop Now Contact for Availability Contact for Availability
17″ × 30″ × 18″ Shop Now Shop Now Contact for Availability
17″ × 30″ × 24″ Contact for Availability Shop Now Shop Now
24″ × 24″ × 24″ Contact for Availability Shop Now Contact for Availability
24″ × 36″ × 24″ Contact for Availability Shop Now Shop Now
24″ × 36″ × 30″ Contact for Availability Shop Now Contact for Availability
24″ × 36″ × 36″ Contact for Availability Shop Now Contact for Availability
30″ × 48″ × 24″ Contact for Availability Shop Now Shop Now
30″ × 48″ × 36″ Contact for Availability Shop Now Shop Now
36″ × 36″ × 36″ Contact for Availability Shop Now Contact for Availability
36″ × 60″ × 36″ Contact for Availability Shop Now Shop Now
48″ × 48″ × 36″ Contact for Availability Shop Now Contact for Availability
48″ × 48″ × 48″ Contact for Availability Shop Now Contact for Availability
48″ × 60″ × 48″ Contact for Availability Shop Now Contact for Availability
48″ × 96″ × 48″ Contact for Availability Shop Now Contact for Availability
H-20 Traffic — Browse Sizes
H-20 traffic rating: AASHTO loading based on a 16,000 lb wheel / 32,000 lb axle. Verify the selected enclosure's certified load rating before installation.

Rated for: Deliberate vehicle traffic under AASHTO H-20 loading requirements.

Common installations: Driveways, parking areas, and roadway utility access where the project specifies H-20 loading.

Choose an outside size, then select a depth. Each depth links to the matching Concast handhole option.

Outside L × W (inches) Inside L × W (inches) Select depth (inches)
18″ × 18″ 12″ × 12″ 18″ × 18″ × 12″ — H-20 › 18″ × 18″ × 18″ — H-20 › 18″ × 18″ × 24″ — H-20 › 18″ × 18″ × 30″ — H-20 › 18″ × 18″ × 36″ — H-20 ›
18″ × 24″ 12″ × 18″ 18″ × 24″ × 12″ — H-20 › 18″ × 24″ × 18″ — H-20 › 18″ × 24″ × 24″ — H-20 › 18″ × 24″ × 30″ — H-20 › 18″ × 24″ × 36″ — H-20 ›
18″ × 30″ 12″ × 24″ 18″ × 30″ × 12″ — H-20 › 18″ × 30″ × 18″ — H-20 › 18″ × 30″ × 24″ — H-20 › 18″ × 30″ × 30″ — H-20 › 18″ × 30″ × 36″ — H-20 ›
18″ × 36″ 12″ × 30″ 18″ × 36″ × 12″ — H-20 › 18″ × 36″ × 18″ — H-20 › 18″ × 36″ × 24″ — H-20 › 18″ × 36″ × 30″ — H-20 › 18″ × 36″ × 36″ — H-20 ›
24″ × 24″ 18″ × 18″ 24″ × 24″ × 12″ — H-20 › 24″ × 24″ × 18″ — H-20 › 24″ × 24″ × 24″ — H-20 › 24″ × 24″ × 30″ — H-20 › 24″ × 24″ × 36″ — H-20 ›
24″ × 30″ 18″ × 24″ 24″ × 30″ × 12″ — H-20 › 24″ × 30″ × 18″ — H-20 › 24″ × 30″ × 24″ — H-20 › 24″ × 30″ × 30″ — H-20 › 24″ × 30″ × 36″ — H-20 ›
24″ × 36″ 18″ × 30″ 24″ × 36″ × 12″ — H-20 › 24″ × 36″ × 18″ — H-20 › 24″ × 36″ × 24″ — H-20 › 24″ × 36″ × 30″ — H-20 › 24″ × 36″ × 36″ — H-20 ›
30″ × 30″ 24″ × 24″ 30″ × 30″ × 12″ — H-20 › 30″ × 30″ × 18″ — H-20 › 30″ × 30″ × 24″ — H-20 › 30″ × 30″ × 30″ — H-20 › 30″ × 30″ × 36″ — H-20 ›
30″ × 36″ 24″ × 30″ 30″ × 36″ × 12″ — H-20 › 30″ × 36″ × 18″ — H-20 › 30″ × 36″ × 24″ — H-20 › 30″ × 36″ × 30″ — H-20 › 30″ × 36″ × 36″ — H-20 ›
30″ × 48″ 24″ × 42″ 30″ × 48″ × 12″ — H-20 › 30″ × 48″ × 18″ — H-20 › 30″ × 48″ × 24″ — H-20 › 30″ × 48″ × 30″ — H-20 › 30″ × 48″ × 36″ — H-20 ›
H-20 Concrete Pull Boxes
