About The Product

Product Details
PRODUCT DETAILSView Product Details
Item / SKU APC363636PCT22
Nominal Size 36″ × 36″ × 36″
Complete Assembly Weight Varies by configuration (confirm exact base-and-lid assembly weight with J&H)
Load Rating Tier 22
Units Per Pallet 1 (full pallet)
Manufacturer J&H American Enclosures
Material Polymer concrete
Construction Open-bottom design; closed bottom available upon request
Standard Hardware Stainless steel hex bolts
Available Markings Standard cast logos; custom markings available upon request
Warranty 1-year manufacturer warranty
Quantity Discounts Available

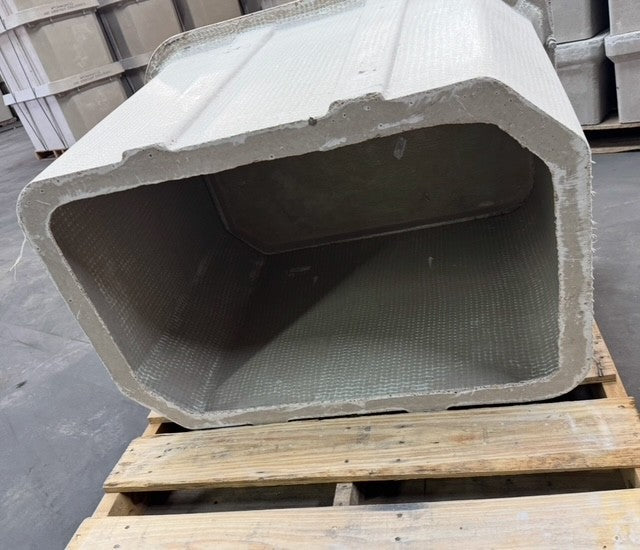

Open bottom: Standard configuration.Closed bottom: Available upon request.Included: Sold with the Base and Lid.
Informational Links

Product-specific manufacturer drawing, warranty, compliance documentation, and testing information for J&H American Enclosures. Drawing note: The linked J&H drawing is labeled APC363636 but lists weight as "Varied"; please confirm the exact assembly weight and illustrated dimensions with J&H before specifying or ordering.

The J&H APC363636 drawing gives the weight as "Varied" and its illustrated dimensions should be confirmed with the manufacturer. Please request the exact assembly weight for the 36″ × 36″ × 36″ configuration before ordering.

Loading Requirements
Vertical Loading
  • Design Load: 22,500 lbs.
  • Test Load: 33,750 lbs.
Lateral Loading
  • Design Load: 800 lbs./sq. ft.
  • Test Load: 1,200 lbs./sq. ft.
Cast Logos, Markings & Accessories
Cast Logos & Markings

Standard cast logos are provided at no additional charge:

Traffic Signal, Fiber Optics, Fiber, Data, Telephone, Communication, Communications, Telecommunications, Telecom, Electric, Electrical, Power, Lighting & City Lighting

Custom Cast Logos

Custom cast logos are limited to 14 letters or numbers across two rows.

Additional Options & Accessories
  • Logo Inserts
  • Cable Racks
  • Cable Hooks
  • Stainless Steel Penta Bolts
  • Stainless Steel Penta Lag Bolts
  • EMS Coils
  • Pulling Eyes
  • Knockouts (K/O's)
  • Mouseholes
Accessory Examples Select Options Available Upon Request

Examples of identification, cable management, and cover options for select handhole configurations.

Example of Cable Racks accessory for underground handholesCable Racks

Support and organize cables inside compatible enclosures.

Contact Us For Availability › 		Example of Lid Markers accessory for underground handholesLid Markers

Interchangeable utility identification plates for select lids.

Select lid-marker type for your vault:

Shop Glasmasters Lid Markers ›Shop J&H Lid Markers ›

Choose your marking on the product page. Confirm lid compatibility before purchase.
Example of Steel Lids accessory for underground handholesSteel Lids

Optional steel cover configurations for select applications.

Contact Us For Availability › 		Example of Handhole Divider accessory for underground handholesHandhole Divider

Separate and organize interior cable pathways.

Contact Us For Availability ›

Need an accessory? Ask us about compatibility, availability, and pricing for your handhole size and configuration. Images are examples only.

Looking To Place A Bulk Order?

We offer flexible quantities to meet your needs, from individual units to large volume orders. For quantities outside the standard online package, contact our sales team for customized pricing and availability.

Handhole Load Rating & Size Guide

1. Match the load rating to your installation. 2. Open a size chart below to shop the right enclosure.

Handhole Ratings at a Glance
Representative product images from our website are shown below so customers can quickly compare each handhole rating.
Pedestrian handhole
Pedestrian
Foot traffic only
Not vehicle-rated
Landscaping and protected pedestrian areas
Tier 8 handhole
Tier 8
8,000 lb design
12,000 lb test
Sidewalks with incidental vehicle exposure
Tier 15 handhole
Tier 15
15,000 lb design
22,500 lb test
Off-road locations with occasional vehicle loads
Tier 22 handhole
Tier 22
22,500 lb design
33,750 lb test
Off-road locations with occasional heavier vehicle loads
H-20 traffic handhole
H-20 Traffic
16,000 lb / wheel
32,000 lb / axle
Deliberate truck/vehicle traffic, to approved H-20 design

Design load = rated design value; test load = higher verification load, not the allowable everyday load. Tier ratings follow ANSI/SCTE 77; H-20 is a separate AASHTO traffic-loading classification. Confirm the exact lid and enclosure rating for your project.

Shop by size
Pedestrian & Tier 22 — Browse Sizes
Pedestrian: Foot traffic only.   Tier 22: 22,500 lb design / 33,750 lb test. Choose a size from the matching column below.
Size Pedestrian
Foot traffic only 		Tier 22 · Polymer Concrete
22,500 lb design 		HDPE / Composite
Check model-specific tier
10″ round Shop Now
Shop Now 		Contact for Availability Contact for Availability
10″ × 15″ × 12″ Shop Now Contact for Availability Contact for Availability
11″ × 18″ × 12″ Contact for Availability Shop Now Contact for Availability
11″ × 18″ × 18″ Contact for Availability Shop Now
Shop Now 		Contact for Availability
12″ × 12″ × 12″ Contact for Availability Shop Now Contact for Availability
13″ × 24″ × 12″ Contact for Availability Shop Now Contact for Availability
13″ × 24″ × 18″ Contact for Availability Shop Now Contact for Availability
14″ × 20″ × 12″ Shop Now Contact for Availability Contact for Availability
17″ × 30″ × 18″ Shop Now Shop Now Contact for Availability
17″ × 30″ × 24″ Contact for Availability Shop Now Shop Now
24″ × 24″ × 24″ Contact for Availability Shop Now Contact for Availability
24″ × 36″ × 24″ Contact for Availability Shop Now Shop Now
24″ × 36″ × 30″ Contact for Availability Shop Now Contact for Availability
24″ × 36″ × 36″ Contact for Availability Shop Now Contact for Availability
30″ × 48″ × 24″ Contact for Availability Shop Now Shop Now
30″ × 48″ × 36″ Contact for Availability Shop Now Shop Now
36″ × 36″ × 36″ Contact for Availability Shop Now Contact for Availability
36″ × 60″ × 36″ Contact for Availability Shop Now Shop Now
48″ × 48″ × 36″ Contact for Availability Shop Now Contact for Availability
48″ × 48″ × 48″ Contact for Availability Shop Now Contact for Availability
48″ × 60″ × 48″ Contact for Availability Shop Now Contact for Availability
48″ × 96″ × 48″ Contact for Availability Shop Now Contact for Availability
H-20 Traffic — Browse Sizes
H-20 traffic rating: AASHTO loading based on a 16,000 lb wheel / 32,000 lb axle. Verify the selected enclosure's certified load rating before installation.

Rated for: Deliberate vehicle traffic under AASHTO H-20 loading requirements.

Common installations: Driveways, parking areas, and roadway utility access where the project specifies H-20 loading.

Choose an outside size, then select a depth. Each depth links to the matching Concast handhole option.

Outside L × W (inches) Inside L × W (inches) Select depth (inches)
18″ × 18″ 12″ × 12″ 18″ × 18″ × 12″ — H-20 › 18″ × 18″ × 18″ — H-20 › 18″ × 18″ × 24″ — H-20 › 18″ × 18″ × 30″ — H-20 › 18″ × 18″ × 36″ — H-20 ›
18″ × 24″ 12″ × 18″ 18″ × 24″ × 12″ — H-20 › 18″ × 24″ × 18″ — H-20 › 18″ × 24″ × 24″ — H-20 › 18″ × 24″ × 30″ — H-20 › 18″ × 24″ × 36″ — H-20 ›
18″ × 30″ 12″ × 24″ 18″ × 30″ × 12″ — H-20 › 18″ × 30″ × 18″ — H-20 › 18″ × 30″ × 24″ — H-20 › 18″ × 30″ × 30″ — H-20 › 18″ × 30″ × 36″ — H-20 ›
18″ × 36″ 12″ × 30″ 18″ × 36″ × 12″ — H-20 › 18″ × 36″ × 18″ — H-20 › 18″ × 36″ × 24″ — H-20 › 18″ × 36″ × 30″ — H-20 › 18″ × 36″ × 36″ — H-20 ›
24″ × 24″ 18″ × 18″ 24″ × 24″ × 12″ — H-20 › 24″ × 24″ × 18″ — H-20 › 24″ × 24″ × 24″ — H-20 › 24″ × 24″ × 30″ — H-20 › 24″ × 24″ × 36″ — H-20 ›
24″ × 30″ 18″ × 24″ 24″ × 30″ × 12″ — H-20 › 24″ × 30″ × 18″ — H-20 › 24″ × 30″ × 24″ — H-20 › 24″ × 30″ × 30″ — H-20 › 24″ × 30″ × 36″ — H-20 ›
24″ × 36″ 18″ × 30″ 24″ × 36″ × 12″ — H-20 › 24″ × 36″ × 18″ — H-20 › 24″ × 36″ × 24″ — H-20 › 24″ × 36″ × 30″ — H-20 › 24″ × 36″ × 36″ — H-20 ›
30″ × 30″ 24″ × 24″ 30″ × 30″ × 12″ — H-20 › 30″ × 30″ × 18″ — H-20 › 30″ × 30″ × 24″ — H-20 › 30″ × 30″ × 30″ — H-20 › 30″ × 30″ × 36″ — H-20 ›
30″ × 36″ 24″ × 30″ 30″ × 36″ × 12″ — H-20 › 30″ × 36″ × 18″ — H-20 › 30″ × 36″ × 24″ — H-20 › 30″ × 36″ × 30″ — H-20 › 30″ × 36″ × 36″ — H-20 ›
30″ × 48″ 24″ × 42″ 30″ × 48″ × 12″ — H-20 › 30″ × 48″ × 18″ — H-20 › 30″ × 48″ × 24″ — H-20 › 30″ × 48″ × 30″ — H-20 › 30″ × 48″ × 36″ — H-20 ›
