About the Product

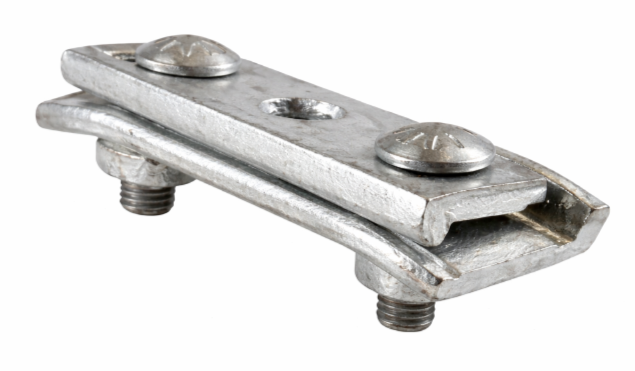

The Corner Suspension Clamp is designed for attaching 1/4" to 7/16" strand to corner poles using a 5/8" diameter thru bolt. It features two mating clamp plates, two 1/2"-13 track bolts with attached square nuts, and a flared plate design that helps guide the strand into the grooves and keep it securely seated. The clamp is hot-dip galvanized and meets ASTM A153.
|
Application:
|
Attaching strand to corner/corner poles
|
|
Strand Size Range:
|
1/4" (6.6 mm) to 7/16" (16 mm)
|
|
Clamp Design:
|
(2) mating clamp plates
|
|
Hardware Included:
|
(2) 1/2"-13 track bolts with attached square nuts
|
|
Clamp Plate Dimensions:
|
1-11/16" W x 7-1/4" L
|
|
Installation-Friendly Design:
|
One plate is flared at both ends to help pull strand through
Includes a projecting lip to keep strand seated securely in the grooves
|
|
Center Mounting Hole:
|
For 5/8" diameter bolt
|
|
Finish:
|
Hot dip galvanized
|
|
Galvanizing Standard:
|
Meets ASTM A153
|
|
Telecom Specialties
|
A-SC-358C
|
|
Allied Bolt
|
5083
|
|
MacLean
|
SI-1750
|
|
Hubbell
|
7903L
|
|
Powerline Hardware
|
P7901-A
|
Commonly Used With
Need a different quantity?
We offer flexible quantities to meet your needs, from individual units to large volume orders. For quantities outside the standard online package, contact our sales team for customized pricing and availability.
Call: 866-303-9408
Email: sales@telecomspecialties.com
About the Product
The Corner Suspension Clamp is designed for attaching 1/4" to 7/16" strand to corner poles using a 5/8" diameter thru bolt. It features two mating clamp plates, two 1/2"-13 track bolts with attached square nuts, and a flared plate design that helps guide the strand into the grooves and keep it securely seated. The clamp is hot-dip galvanized and meets ASTM A153.
|
Application:
|
Attaching strand to corner/corner poles
|
|
Strand Size Range:
|
1/4" (6.6 mm) to 7/16" (16 mm)
|
|
Clamp Design:
|
(2) mating clamp plates
|
|
Hardware Included:
|
(2) 1/2"-13 track bolts with attached square nuts
|
|
Clamp Plate Dimensions:
|
1-11/16" W x 7-1/4" L
|
|
Installation-Friendly Design:
|
One plate is flared at both ends to help pull strand through
Includes a projecting lip to keep strand seated securely in the grooves
|
|
Center Mounting Hole:
|
For 5/8" diameter bolt
|
|
Finish:
|
Hot dip galvanized
|
|
Galvanizing Standard:
|
Meets ASTM A153
|
|
Telecom Specialties
|
A-SC-358C
|
|
Allied Bolt
|
5083
|
|
MacLean
|
SI-1750
|
|
Hubbell
|
7903L
|
|
Powerline Hardware
|
P7901-A
|
Commonly Used With
Corner Suspension Clamp For 5/8 in. Thru Bolt ($11.65/Unit)
