About the Product

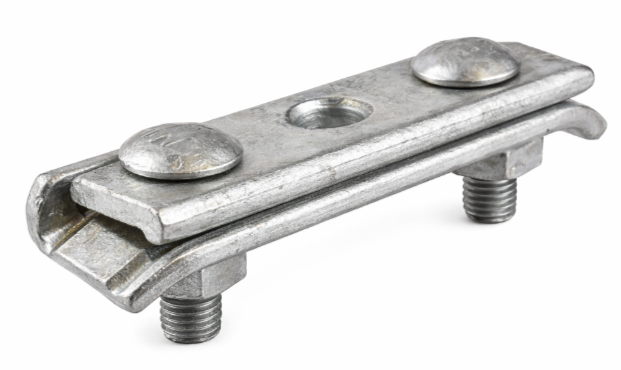

The B Corner Angled Suspension Clamp is designed for attaching 1/4" to 7/16" strand to corner poles using a 3/4" diameter thru bolt. It features two mating plates, two 5/8"-11 track bolts with attached square nuts, and flared ends that help guide the strand through the clamp while retaining it securely in the grooves. The clamp is hot-dip galvanized and meets ASTM A153.
|
Application:
|
Attaching strand to corner poles
|
|
Strand Size Accepted:
|
1/4" (6.6 mm) to 7/16" (16 mm)
|
|
Clamp Design:
|
Two mating plates
|
|
Hardware Included:
|
(2) 5/8"-11 track bolts with attached square nuts
|
|
Clamp Plate Size:
|
2-3/16" wide x 7" long
|
|
Installation Aid:
|
One plate is flared at each end to guide pull strand through the clamp
Includes a projecting lip to retain strand securely in grooves
|
|
Center Mounting Hole:
|
For use with 3/4" diameter bolt
|
|
Finish:
|
Hot dip galvanized
|
|
Galvanizing Standard:
|
Meets ASTM A153
|
|
Telecom Specialties
|
A-SC-345C
|
|
Allied Bolt
|
5081
|
|
MacLean
|
J7901
|
|
Hubbell
|
7902L
|
|
Powerline Hardware
|
P7901
|
