About the Product

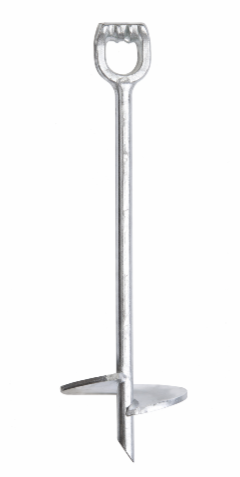

The 3/4" x 66" No-Wrench Screw Anchor with a 6" helix is designed for securing up to three guy wires at utility poles. The triple-eye, unthreaded rod can be installed directly into the ground by hand or with power equipment. It features a firmly welded helix, angled point, and hot-dip galvanized finish that meets ASTM A123. Holding strength varies by soil class, from 2,500 to 6,500 lbs.
|
Rod Diameter:
|
3/4"
|
|
Overall Length:
|
66"
|
|
Helix Size:
|
6"
|
|
Configuration:
|
Triple strand / triple eye
|
|
Use/Application:
|
Securing up to three guy wires at utility poles
|
|
Installation:
|
Turn anchor directly into ground; installable by hand or with power equipment
|
|
Eye Dimensions:
|
Same as standard anchor rods
|
|
Construction:
|
Unthreaded triple-eye rod, Angled point, Firmly welded helix
|
|
Finish:
|
Hot dip galvanized
|
|
Galvanizing Standard:
|
Meets ASTM A123
|
|
Holding Strength (3/4" Rod)
|
|
|
Soil Class 5:
|
6,500 lbs
|
|
Soil Class 6:
|
5,000 lbs
|
|
Soil Class 7:
|
2,500 lbs
|
|
Typical Installation Torque: 400 ft-lbs
|
|
|
Telecom Specialties
|
A-NWA-34666
|
|
Allied Bolt
|
1166
|
|
MacLean
|
J6526WCA
|
|
Hubbell
|
6346
|
|
Powerline Hardware
|
P6526
|
Commonly Used With
