For telecom project managers and infrastructure engineers specifying conduit for OSP fiber builds
Conduit fill ratio is one of those specifications that looks straightforward — pick a percentage, pick a conduit size, move on. In practice, getting it wrong in either direction creates real problems: too high a fill ratio and the cable pull fails or damages the jacket; too low and you've spent money on conduit you didn't need while forgoing the capacity reserve that would let you add cables without re-trenching.
This guide explains what fill ratio actually measures, how it connects to pulling tension and cable protection, what the governing standards require, and how to use it to make defensible conduit sizing decisions for OSP fiber builds.
Quick Answer: Fill ratio is the percentage of the conduit's inner bore cross-sectional area occupied by the cable or cables being pulled through it. For telecom OSP fiber builds, design to 40% fill — this leaves enough clearance to manage pulling friction over long runs and bends, provides thermal expansion room, and reserves capacity for future cable additions. The absolute maximum is 70%, and that threshold should only be approached in retrofit situations, never in new builds. Conduit sized correctly at 40% fill protects cable jacket integrity, keeps pulling tension within acceptable limits, and preserves the infrastructure investment for the network's full service life.
What Fill Ratio Actually Measures — and Why Both Extremes Cause Problems
Fill ratio compares the area the cable(s) occupy to the available area inside the conduit bore. It is expressed as a percentage:
Fill Ratio (%) = (Total Cable Cross-Sectional Area ÷ Conduit Inner Bore Area) × 100
Cable Area = π × (cable OD ÷ 2)²
Conduit Bore Area = π × (conduit ID ÷ 2)²
What happens when fill ratio is too high (above 70%)
When cable fills too much of the conduit bore, the space between the cable jacket and the conduit wall is too small to manage friction effectively. On any conduit run with bends, the cable presses against the conduit wall on the inside of each bend. Without adequate clearance, the normal forces increase rapidly, and the required pulling tension rises accordingly.
Excessive pulling tension causes:
- Jacket damage: Fiber cable jackets are rated for maximum pulling tension (typically 600 lbf for a 144-fiber OSP cable). Exceeding this damages the jacket, allowing moisture ingress and potentially stressing the aramid strength members.
- Fiber stress: If pulling tension exceeds the cable's rated limit, the fibers can experience tensile stress leading to microbending — signal degradation that may not be immediately measurable but worsens over time.
- Stalled pulls: In the worst case, the cable binds in the conduit and the pull cannot be completed — requiring the cable to be abandoned and a new pull attempted after resolving the cause.
What happens when fill ratio is too low (below 15–20%)
A conduit with very low fill ratio is not a problem during installation, but it signals that money was spent on conduit capacity that isn't needed. The 40% design target deliberately leaves 60% of capacity available — that's the design reserve, not wasted space.
There is one scenario where very low fill ratio creates an installation problem: cable-blowing (air-assisted installation). In microduct blowing applications, the cable is propelled by airflow, and that airflow requires adequate pressure behind the cable. If the clearance between the cable and the duct wall is too large, air escapes around the cable rather than propelling it. This is why microduct blowing applications use much tighter fit ratios — typically 50–70% diameter ratio rather than 40% area fill for mechanical pulling.
How Fill Ratio Affects Pulling Tension: The Physics
Pulling tension accumulates over the length of a conduit run and increases at every bend. The relationship between fill ratio and tension is not linear — small increases in fill ratio at high fill levels create disproportionately large increases in pulling tension, especially on runs with multiple bends.
The primary variable connecting fill ratio to pulling tension is the coefficient of friction between the cable jacket and the conduit wall. Three factors control this:
- The contact area between cable and conduit wall. A cable that nearly fills the bore has more contact with the conduit wall than one with generous clearance — this increases friction directly.
- The normal force at each bend. At every bend in the conduit, the cable is pushed against the outer wall by centripetal force. The tighter the bend and the higher the fill ratio, the greater the normal force and the resulting friction.
- Lubrication effectiveness. With adequate clearance (fill ratio at or below 40%), lubricant distributes evenly around the cable and along the bore. At high fill ratios, the clearance is too small for lubricant to coat the contact surfaces effectively.
Rule on bend accumulation: Limit each conduit pull section to no more than 180 degrees of total bend (equivalent to two 90-degree sweeps). Beyond this, accumulated tension typically exceeds safe limits regardless of fill ratio. Pull boxes at conduit bends are tension management infrastructure, not just a convenience.
Fill Ratio Standards: What the Codes Require
| Standard | Design Fill Target | Maximum Fill | Application Scope |
|---|---|---|---|
| NEC Chapter 9, Table 1 | 53% (1 cable), 31% (2 cables), 40% (3+ cables) | Not explicitly set above these | Electrical conduit fill; used as baseline reference for telecom |
| ANSI/TIA-569-D | 40% | 70% | Telecommunications pathways and spaces; directly applicable to OSP telecom conduit |
| BICSI TDMM | 40% | Varies by application | Telecommunications distribution methods; used by structured cabling and OSP designers |
| NTIA BEAD Program | Per project engineering; 40% industry standard | Per grant agreement | Federally funded broadband infrastructure; conduit sizing must be documented in project plans |
| Microduct (blown fiber) | 50–70% diameter ratio | Per manufacturer spec | Air-assisted cable installation; tighter fit required for adequate airflow propulsion |
The Calculation: Step by Step
From the manufacturer's spec sheet — not estimated. A 144-fiber loose tube OSP cable is typically 16–17 mm OD. A 24-fiber cable is typically 10–12 mm. Multiple cables of different sizes are all included.
Cable Area = π × (OD ÷ 2)² Sum the areas of all cables in the pull. Example: two 144-fiber cables at 16 mm OD each: Area = 2 × [π × (8)²] = 2 × 201 = 402 mm²
Required Bore Area = Total Cable Area ÷ 0.40 (for 40% fill target) Example: 402 mm² ÷ 0.40 = 1,005 mm²
Min ID = √(4 × Required Bore Area ÷ π) Example: √(4 × 1,005 ÷ π) = 35.8 mm = 1.41 inches Round up to the next standard trade size.
1.5" HDPE SDR 13.5: ID ≈ 44.5 mm → Bore Area = 1,555 mm² Actual fill = 402 ÷ 1,555 = 25.8% ✓ — comfortably under 40%, with capacity for a third cable without re-trenching.
SDR 13.5 for standard direct-buried in soil. SDR 11 for rocky soil, HDD, or aggressive loading. SDR 9 for extreme conditions or road crossings. SDR determines crush resistance — fill ratio calculation assumes the conduit bore holds its shape under soil load.
HDPE Conduit Reference: Common Sizes and Usable Area at 40% Fill
| Trade Size | Nom. OD (in) | SDR 13.5 ID (in) | SDR 11 ID (in) | 40% Fill Area SDR13.5 (in²) | Max Cable OD at 40% SDR13.5 (mm) |
|---|---|---|---|---|---|
| 1" | 1.315 | 1.218 | 1.076 | 0.47 | 19.5 |
| 1.25" | 1.660 | 1.532 | 1.360 | 0.74 | 24.5 |
| 1.5" | 1.900 | 1.751 | 1.556 | 0.96 | 28.0 |
| 2" | 2.375 | 2.193 | 1.943 | 1.51 | 35.1 |
| 3" | 3.500 | 3.226 | 2.862 | 3.27 | 51.7 |
| 4" | 4.500 | 4.154 | 3.682 | 5.41 | 66.5 |
Using the 'Max Cable OD' column: The rightmost column shows the largest single cable OD that fits at 40% fill for each conduit size in SDR 13.5. If your cable OD is below the value for a given conduit size, you are at or below 40% fill with that combination. Values are in millimeters to match standard cable OD specifications.
Fill Ratio for Microduct and Cable-Blowing Applications
Air-assisted cable installation (cable blowing) through microduct operates under different fill ratio principles than mechanical pulling. In a blown installation, compressed air propels the cable through the duct — and the physics work best when the cable fits the duct bore tightly, not loosely.
Why tighter is better for blowing:
- In mechanical pulling, clearance reduces friction and improves pull success. In blowing, clearance is where the propulsive air escapes around the cable — the tighter the fit, the more airflow energy goes into pushing the cable forward.
- Typical blowing diameter ratios are 50–70% (cable OD as a percentage of duct ID), compared to 40% area fill for mechanical pulling.
- Blowing distance is also a function of duct bend count and the cable's coefficient of friction with the duct wall — consult the cable and microduct manufacturer's specifications for the specific combination.
For builds that include microduct segments, consult the cable and microduct manufacturer's installation guide for the specific OD combination and target install distances. The 40% area fill standard does not directly apply to blown microduct runs.
Five Conduit Fill Mistakes That Increase Installation Risk
| Mistake | What It Causes | How to Avoid It |
|---|---|---|
| Designing to 70% fill on new builds | No capacity reserve; any future cable addition requires re-trenching; long pulls near or above safe tension limits | Design to 40%; treat 70% as an absolute maximum for retrofit situations only |
| Using estimated cable OD instead of spec sheet value | Under- or over-sizing based on wrong cable dimensions; a 10% OD error changes cable area by 21% | Pull the actual OD from the manufacturer's spec sheet for each cable before sizing conduit |
| Ignoring bend accumulation in fill ratio calculations | A 35% fill conduit on a straight run may generate excessive tension on a route with 3–4 bends; pull fails or cable is damaged | Plan pull sections to limit total bend to 180° per section; install pull boxes at additional bends |
| Specifying SDR 17 for direct-buried runs in soil with rock content | Thin-wall conduit deforms under point loads from rock; bore collapses, blocking future pulls and potentially damaging installed cable | Specify SDR 11 whenever rock content is present or installation is by HDD or plow-in in rocky terrain |
| Applying mechanical pull fill ratio standards to blown microduct | Over-specified duct diameter for blown installation; air escapes around cable; installation distances fall short of design expectations | For blown microduct, use the cable and microduct manufacturer's specifications for OD ratio and target install distance |
Sourcing HDPE Conduit for OSP Fiber Builds
Telecom Specialties stocks smoothwall HDPE conduit for direct-buried and trenchless outside plant fiber builds:

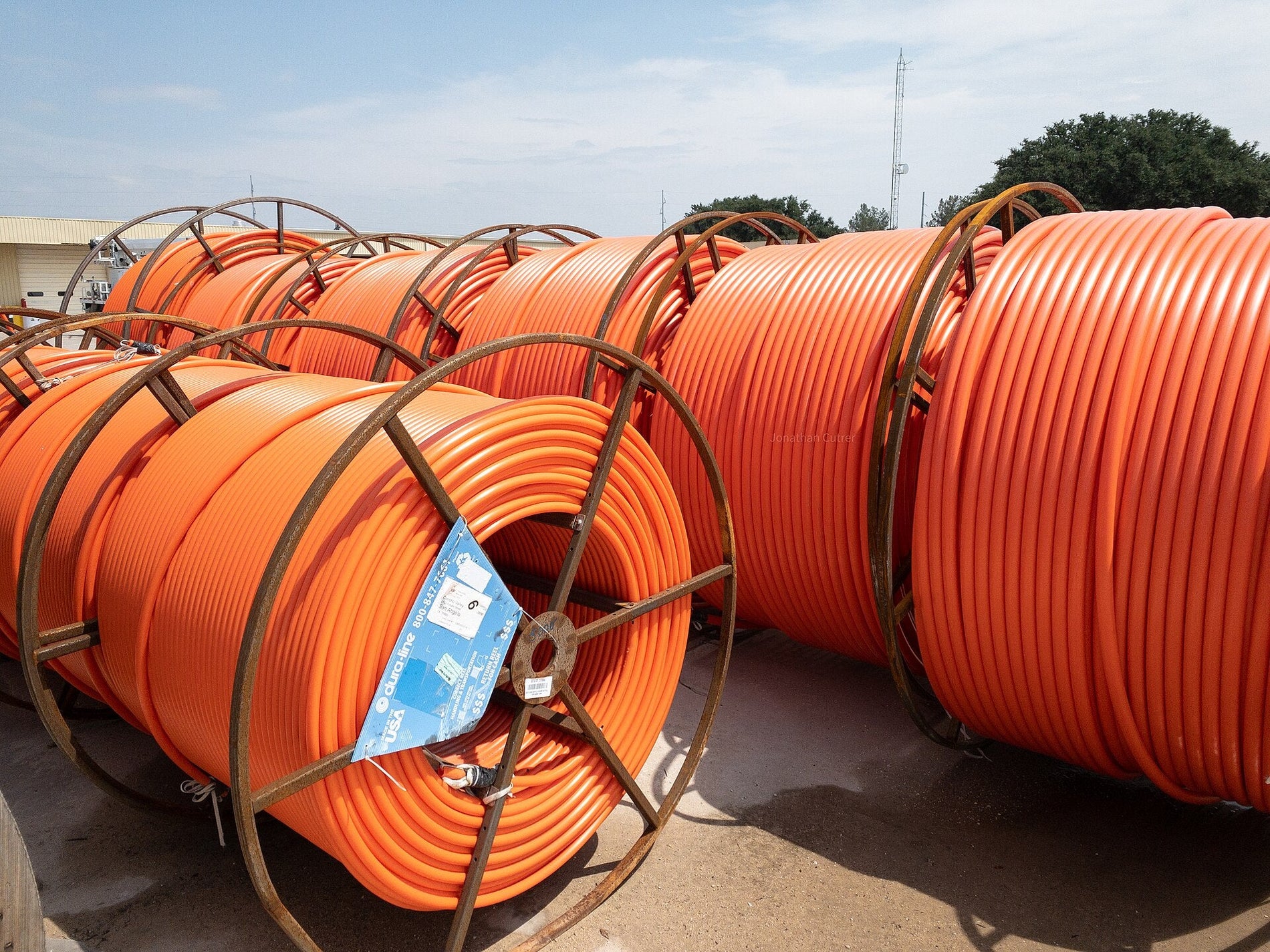

- HDPE conduit — 1", 1.25", 1.5", 2", and larger trade sizes in SDR 11 and SDR 13.5, bulk reel quantities for large builds
- Smoothwall innerduct — for subdivision of larger conduit bores and cable-blowing applications
- Corrugated innerduct — for installation inside existing conduit systems, reducing friction for future cable additions
- Conduit fittings and end seals — couplers, end caps, and watertight sealing accessories
- Fiber pulling lubricant — water-based lubricant compatible with PE-jacketed fiber cable and HDPE conduit
For conduit sizing support, BOM assistance, and BEAD-compliant OSP material sourcing, contact Telecom Specialties at
866-303-9408 | sales@telecomspecialties.com | telecomspecialties.com
Frequently Asked Questions
How do I know what fill ratio to use when selecting HDPE conduit for fiber installations?
Design to 40% fill ratio — the total cross-sectional area of all cables in the conduit should not exceed 40% of the conduit's inner bore area. This is the standard specified by ANSI/TIA-569-D and used by BICSI TDMM for telecom conduit sizing. The 40% target provides sufficient clearance to keep pulling tension within safe limits on runs with bends, allows thermal expansion without cable binding, and reserves 60% of conduit capacity for future cable additions without re-trenching. The absolute maximum is 70%, which should only be approached in retrofit situations where the conduit cannot be replaced — never design a new build to 70%.
How does conduit fill ratio affect cable pulling tension?
Fill ratio directly affects pulling tension through friction. At high fill ratios, the clearance between the cable jacket and conduit wall is too small for pulling lubricant to distribute effectively, and the cable makes more contact with the conduit wall at every bend — increasing the normal force and therefore the friction the pulling system must overcome. A conduit run with multiple bends at 60% fill may require twice the pulling tension of the same run at 40% fill. When pulling tension exceeds the cable's rated maximum (typically 600 lbf for a standard OSP cable), the risk of jacket damage, fiber stress, and pull failure increases substantially.
What HDPE conduit SDR should I use for OSP fiber installations?
SDR 13.5 is the standard specification for direct-buried telecom OSP conduit in normal soil conditions. SDR 11 is required for rocky soil, plow-in in challenging terrain, or horizontal directional drilling (HDD). SDR 9 is appropriate for extreme crush load conditions such as road crossings or areas with significant overhead vehicle traffic. SDR selection affects wall thickness and therefore the actual conduit ID for a given trade size — when sizing conduit, confirm the ID for the specific SDR you are specifying, not just the trade size nominal dimension.
Is the fill ratio for cable blowing the same as for mechanical pulling?
No — they are different. For mechanical pulling, the 40% area fill ratio is the design target. For cable blowing through microduct, the relevant metric is the diameter ratio between the cable OD and the duct ID, and tighter is better (typically 50–70% diameter ratio). Do not apply the 40% area fill standard to blown microduct installations — use the cable and microduct manufacturer's specifications for the specific OD combination and target installation distance.
Bottom Line for Project Managers
Fill ratio is a straightforward calculation with straightforward consequences at both extremes. Design to 40%, verify against actual cable OD values from spec sheets, select SDR based on installation method and soil conditions, and limit pull section bends to 180 degrees total. These four decisions, made correctly at the planning stage, prevent the most common and expensive OSP conduit installation failures.
The conduit is a permanent investment. The cable inside it can be replaced over a 20- or 30-year network life. Conduit sized correctly at 40% fill with the right SDR will outlast multiple generations of fiber cable without a shovel going back in the ground.
