For telecom project managers, network engineers, and procurement teams specifying termination and cross-connect hardware
Fiber patch cables and fiber pigtails look similar on a spec sheet - both are short lengths of fiber with a connector on at least one end - but they solve different problems in a fiber network. Specifying the wrong one leads to unnecessary splicing, wasted connectors, or a cross-connect that cannot be reconfigured without cutting cable.
The core distinction is simple: a patch cable is connectorized on both ends and is used to make a connection between two already-terminated points. A pigtail is connectorized on only one end, with the other end left as bare fiber for fusion splicing directly into a cable, splice tray, or termination panel.
Quick Answer: Use a fiber patch cable when you are connecting two existing connector interfaces - port to port, panel to panel, or panel to equipment. Use a fiber pigtail when you need to terminate a bare fiber cable end - such as a newly spliced OSP cable - onto a connector so it can plug into a patch panel, splice closure, or optical distribution frame. Pigtails go into splice trays; patch cables go between finished ports.
What Is a Fiber Patch Cable?
A fiber patch cable (also called a patch cord or jumper) is a fully factory-terminated fiber assembly with a connector on each end - for example LC to LC, SC to SC, or LC to SC. Both ends are ready to plug into equipment, patch panels, or optical distribution frames without any field splicing or termination work.
Patch cables are used for the last, reconfigurable link in a fiber path: connecting a switch port to a patch panel, jumping between two panels in a cross-connect, or linking a media converter to a wall outlet. Because both ends are already connectorized, patch cables can be swapped, rerouted, or replaced in minutes without tools.
What Is a Fiber Pigtail?

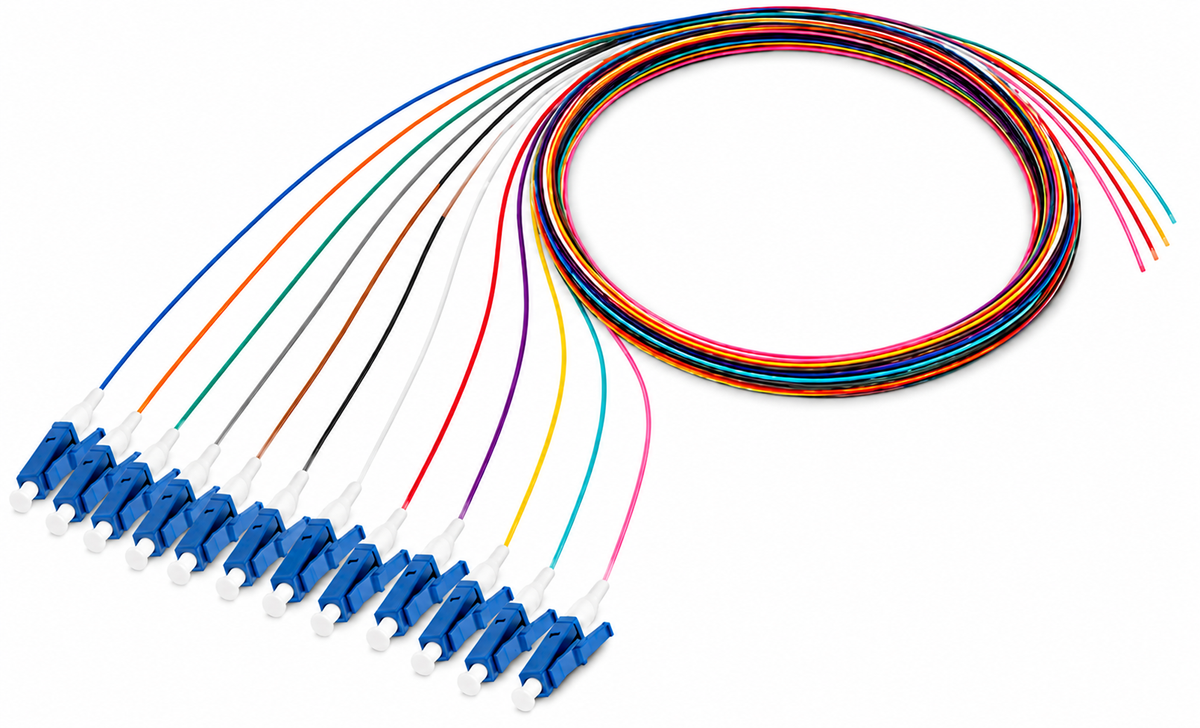

A fiber pigtail is connectorized on one end only. The opposite end is unterminated bare fiber, typically 0.9 mm tight-buffered fiber, meant to be fusion spliced to another fiber - most often the individual fibers inside an OSP loose tube cable or an indoor distribution cable.
Pigtails exist because splicing directly to a connector is not practical or reliable in the field. Instead, the installer splices the bare fiber end of the pigtail to the cable fiber inside a splice tray, and the factory-made connector end of the pigtail is what actually seats into the patch panel or splice closure port. This gives a consistent, factory-polished connector end even though the cable itself was terminated in the field.
| Attribute | Fiber Patch Cable | Fiber Pigtail |
|---|---|---|
| Connector ends | Connectorized on both ends | Connectorized on one end; bare fiber on the other |
| Primary use | Connecting two existing connector interfaces | Terminating a bare fiber cable end via fusion splice |
| Installation method | Plug and play - no field work required | Requires fusion splicing in the field |
| Typical location | Cross-connects, patch panels, equipment jumpers | Splice trays, ODFs, splice closures |
| Reconfigurability | High - unplug and re-route in minutes | Low - re-termination requires re-splicing |
| Common connector types | LC, SC, ST, FC (either end) | LC, SC, ST, FC (terminated end only) |
| Typical fiber count per unit | Simplex or duplex (1-2 fibers) | Simplex (1 fiber per pigtail) |
| Cost driver | Connector count and cable length | Connector count and splice labor |
When to Use a Patch Cable
- Connecting a switch or transceiver port to a patch panel port
- Jumping between two ports on a fiber distribution panel in a cross-connect
- Linking equipment in a data center or telecom room where both ends already have connectorized interfaces
- Any connection you expect to move, replace, or reconfigure without touching a splice
When to Use a Pigtail
- Terminating the individual fibers of an incoming OSP or riser cable inside a splice closure or ODF
- Building out a fiber distribution panel where incoming cable fibers need a connectorized interface for the first time
- Any point in the network where bare fiber meets a connector and the connection point is not expected to change often
Note: Pigtails and patch cables are frequently used together in the same enclosure. The pigtail is spliced to the incoming cable fiber inside the splice tray; the connectorized end of the pigtail seats into a panel port; a patch cable then runs from that port to the next piece of equipment. Understanding this sequence is the key to specifying the right quantity of each.
Fusion Splicing: Why Pigtails Exist at All
Fusion splicing bare fiber directly to a factory connector is not something that happens in the field. Connector end faces require a precision polish that only factory equipment can reliably produce. Pigtails solve this by moving the connector-quality work to the factory and leaving only the splice - a fiber-to-fiber fusion joint - to be done on site. A field fusion splice between two bare fibers has a much lower loss and higher long-term reliability than attempting to polish a connector by hand in the field.
Common Mistakes When Specifying Patch Cables and Pigtails
| Mistake | Why It Happens | How to Avoid It |
|---|---|---|
| Ordering patch cables to terminate an incoming OSP cable | Assuming any connectorized fiber assembly will work at any termination point | Use pigtails for any bare-fiber cable end; reserve patch cables for port-to-port jumpers |
| Under-ordering pigtails for high fiber count splice closures | Not accounting for one pigtail per fiber to be terminated | Count exact fiber terminations needed per closure or ODF, not just cable count |
| Mixing connector types between pigtail and patch cable ends | Specifying pigtails and patch cables from different catalog pages without cross-checking connector type | Confirm connector type (LC/SC/ST/FC) matches on both sides of every splice-to-panel-to-equipment path |
| Using pigtails where reconfigurability is needed | Specifying a fixed splice connection in a location that will need frequent changes | Use a patch panel with pigtails on the cable side and patch cables on the equipment side so changes stay in the patch cable, not the splice |
Sourcing Fiber Patch Cables and Pigtails from Telecom Specialties
Telecom Specialties stocks both patch cables and pigtails across common connector types and fiber counts:
- Fiber patch cables - LC, SC, ST, and FC connectors, simplex and duplex, singlemode and multimode, custom lengths
- Fiber pigtails - factory-terminated on one end, singlemode and multimode, sold individually or in bulk for splice closure and ODF buildouts
- Connector and polish options to match existing panel and closure hardware
For help matching patch cable or pigtail specifications to your termination plan, contact Telecom Specialties at
866-303-9408 | sales@telecomspecialties.com | telecomspecialties.com
Frequently Asked Questions
What is the difference between a fiber patch cable and a pigtail?
A fiber patch cable is connectorized on both ends and connects two existing connector interfaces, such as a switch port to a patch panel. A fiber pigtail is connectorized on only one end, with the other end left as bare fiber for fusion splicing to a cable. Patch cables handle port-to-port connections; pigtails handle the transition from bare fiber to a connectorized interface.
Can I use a patch cable instead of a pigtail to terminate OSP cable?
No. A patch cable has no bare fiber end, so there is nothing to splice to the incoming OSP cable fiber. You need a pigtail - its bare fiber end is fusion spliced to the cable fiber inside a splice tray, and its connectorized end seats into the panel port.
How many pigtails do I need for a splice closure?
One pigtail per fiber that needs a connectorized termination in that closure or ODF. If you are terminating all 24 fibers of a cable at a distribution panel, plan for 24 pigtails plus matching splice tray capacity.
Bottom Line for Specifiers
The patch cable versus pigtail decision comes down to what is on the other end of the connection. If you are joining two connectorized interfaces, use a patch cable. If you are terminating bare fiber - most commonly an incoming OSP or distribution cable - use a pigtail and fusion splice it in. Most fiber distribution builds use both: pigtails on the cable side of the panel, patch cables on the equipment side.
